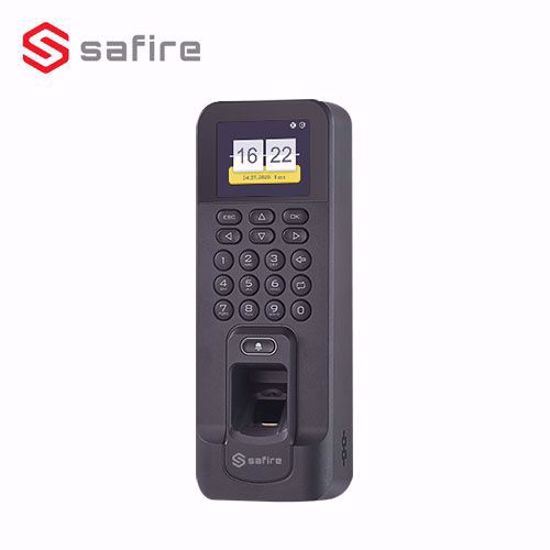

Safire SF-AC3011KMFD-IP terminal za KP i ERV
StandAlone terminal za Kontrolu pristupa i Evidenciju radnog vremena zaposlenih. Kapacitet: otisaka 3.000, kartica 3.000; Čuvanje do 100.000 zapisa događaja i do 150.000 zapisa prisutnosti. POseduje LCD TFT ekran od 2.4 inča, šifrator kao i optički mmodul za čitanje/pisanje otisaka prstiju. Šifrator ima pozadinsko osvetljenje. LED indikator napajanja i statusa (crvena i zelena).
Specifikacije:
| Communication Interface |
TCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34) |
| Working Temperature |
-10 ° C to 55 ° C (14 ° F to 131 ° F) |
| Power Supply |
12 VDC/2 A |
| Audio |
1 Buzzer and 1 Loudspeaker |
| LED Indicator |
Power/Status (Red/Green) |
| LCD Screen |
2.4-inch (320 × 240 LCD-TFT Display Screen) |
| Fingerprint Capacity |
Up to 3000 Fingerprints; Up to 10 Fingerprints for Each Person |
| Storage |
Up to 3000 Valid Cards;Up to 100,000 Event Records; Up to 150,000 Attendance Records |
| Card Reading Mode |
MF Card 13.56MHz |
| Input Interface |
Exit Button × 1, Door Sensor × 1 and Alarm Input × 1 |
| Output Interface |
Relay (Lock Output) × 1, and Alarm Output × 1 |
| Operating System |
Linux |
| Fingerprint Comparing Mode |
1:1 and 1:N, N=3000 |
| Card Reading Response Duration |
< 1 s |
| Fingerprint Authentication Duration |
< 1 s |
| FAR(False Accept Rate) |
≤ 0.001 % |
| FRR (False Rejection Rate) |
≤ 0.01 % |
| Fingerprint Recognizer |
Optical Fingerprint Recognizer Module |
| External Card Reader |
Standard Wiegand26/34 |
| Card Reading Distance |
Not Support |
| Keyboard |
Keyboard (Back Light) |
| Reset Key |
× 1 |
| Wi-Fi |
Support |
| Wiegand Interface |
Output: Wiegand 26/34; Input: Wiegand 26/34 |
| Transmission Rate |
TCP/IP: 10/100Mbps, Self-adaptive; RS485: 19200 bps-N-8-1 |
| USB |
USB 2.0; Type A |
