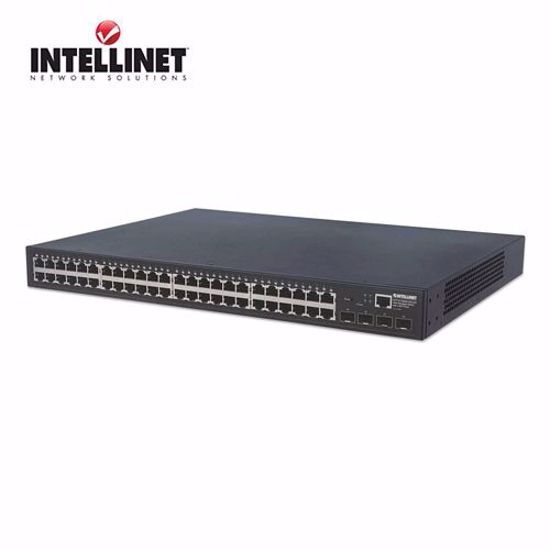

INTELLINET 48-Port Gigabit Ethernet Web-Managed Switch 4xSFP

INTELLINET 48-Port Gigabit Ethernet Web-Managed Switch 4xSFP
INTELLINET 48-Port Gigabit Ethernet Web-Managed Switch 4xSFP INTELLINET 48-Port Gigabit Ethernet Web-Managed Switch 4xSFP 2
SKU: 561334 48x 10/100/1000 Mbps porta za automatsko prepoznavanje optimalne mrežne brzine Četiri mala priključka GBIC modula za priključivanje (SFP) Domotz kompatibilan za upravljanje u oblaku (možda će biti potrebna nadogradnja firmvera)
SKU: IT034
Proizvođač: INTELLINET
Ostavi komentar o proizvodu.

   Standardi

  • IEEE 802.1d (Spanning Tree Protocol)
  • IEEE 802.1p (Traffic Prioritization)
  • IEEE 802.1q (VLAN Tagging)
  • IEEE 802.1s (Spanning Tree Protocol (MSTP))
  • IEEE 802.3ad (Link Aggregation)
  • IEEE 802.3 (10Base-T Ethernet)
  • IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
  • IEEE 802.3ad (Link Aggregation Control Protocol LACP)
  • IEEE 802.3az (Energy Efficient Ethernet EEE)
  • IEEE 802.3u (100Base-TX Fast Ethernet)
  • IEEE 802.3x (Flow Control, for full duplex mode)
  • SNMPv1/v2 (Simple Network Management Protocol)

    Opšte specifikacije
  • Media support:
    - 10Base-T Cat3, 4, 5 UTP/STP RJ45
    - 100Base-TX Cat5 UTP/STP RJ45
    - 1000Base-T Cat5e UTP/STP RJ45
  • Packet filter/forwarding rate:
    - 1,488,000 pps (1000 Mbps)
    - 148,800 pps (100 Mbps)
    - 14,880 pps (10 Mbps)
  • MAC address table: 8k
  • Buffer memory:1500 kBytes
  • Backplane speed / switch fabric: 104 Gbps
  • Switch architecture: store and forward
  • Configuration options:
    - Port link speed: 10 Mbps, 100 Mbps, 1000 Mbps or auto-negotiation
    - Flow control on/off per port
    - VLAN
    - Rate limiting (ingress rate and egress rate)
    - Port mirroring
    - Port isolation
    - Port aggregation/LACP: 8 groups
    - Broadcast Storm configuration with broadcast rate, multicast rate, and flooded unicast rate
    - IGMP snooping
    - Quality of Service (QoS): port-based or DSCP
    - Link Layer Discovery Protocol (LLDP) - Station and Media Access Control Connectivity Discovery
    - Integrated ICMP Ping client sends ping requests to other network nodes
    - SNMPv1/v2c/v3 (Simple Network Management Protocol)
    - RMON (1,2,3 & 9 groups)
    - LAN settings (IP address, Gateway, etc.)
    - SSHv2
    - TACAS+
  • Certifications: FCC Class A, CE

    LED
  • Power
  • Link/activity
  • 10/100 Mbps or 1000 Mbps

    Snaga
  • Input: 100 – 240 VAC, 50 – 60 Hz
  • Power consumption: 36 watts (maximum)

    Spoljašnjost uređaja
  • Metal housing
  • Dimensions: 335 (L) x 440 (W) x 44 (H) [mm] (13.19 (L) x 17.32 (W) x 1.73 (H) [in])
  • Weight: 4.2 kg (9.26 lbs.)
  • Operating temperature: 0 – 40°C (32 – 104°F)
  • Operating humidity: 10 – 90% RH, non-condensing
  • Storage temperature: -20 – 70°C (-4 – 158°F)

    Sadržaj pakovanja
  • 48-Port Gigabit Ethernet Web-Managed Switch with 4 SFP Ports
  • Power cable
  • User manual
  • 19" rackmount brackets
