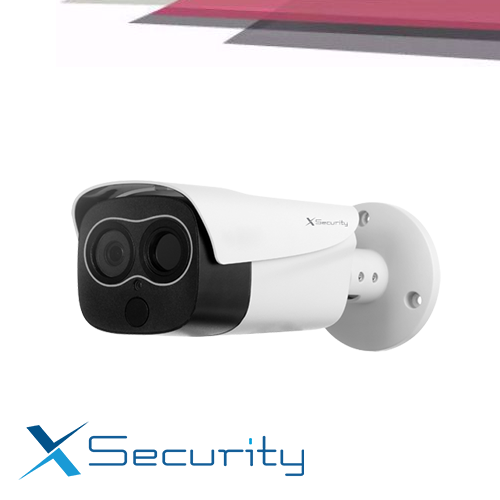

X-Security XS-IPTCV202A-2 termalna kamera

SKU: XS1217
Proizvođač: X-SECURITY
Pozovite za cenu

Model: XS-IPTCV202A-2


X-Security Dual IP termalna kamera; 160x120 VOx | 7mm Lens; Optički senzor 1/2.8”; 2 MP | Objektiv 8mm; Termička osetljivost ≤50mK; Detekcija požara i alarm; Podesivi nivo optičke/termalne fuzije slike;



Brand X-Security
Thermal sensor 160x120 Vanadium oxide
Optical sensor 1/2.8” Progressive Scan CMOS 2 Megapixel
Main Stream rate 1280x960 (25fps) Therm / 1920x1080 (25fps) Opt
Extra Stream rate 640x480 (25fps) Therm / 704x480 (25fps) Opt
Compression H.265 / H.264 / MJPEG
Lens 7 mm (Therm) / 8 mm (Opt)
Viewing angle 56°×44° (Term) / 86.2°×45.9° (Opt)
Thermal sensitivity < 50mK (0.05 º C)
Temperature Measurement No
Spectral range 8~14μm
Pitch detector 12μm
VCA IVS rules (cross line, intrusion, area entry and exit)
Rules for fire Up to 4 regions of fire detection
Intelligent functions Detection of fire and alarm, line crossing, intrusion
smart improvements DWDR, 3DNR, BLC, HLC AGC, ROI, Privacy Mask
Audio 1 input / 1 output
Alarm 2/2 In/Out
Internal memory Micro SD card up to 256GB
Network interface Ethernet 10/100 BaseT
Remote access WEB, CMS (DSS/PSS), Smartphone and NVR interface
Interoperability ONVIF
Power 12VDC, PoE IEEE802.3at
Temp. operation -30º C ~ +55º C
Degree of protection Weatherproof IP67
Dimensions 238.6 mm (D) x 90.4 (Ø) mm
Weight 1000 g
