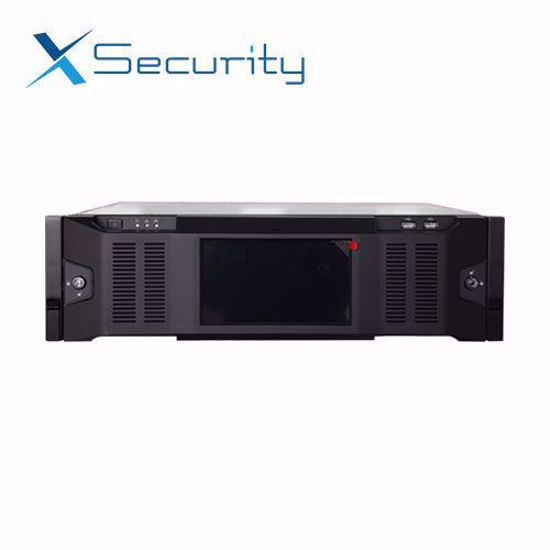

Model: XS-IPS816
Profesionalna NVR server stanica 2000CH
X-Security Centar za upravljanje opštim nadzorom; Veličina 3U; Podržan je propusni opseg od 700 Mbps; 500 IP uređaja / 100 ONVIF; Neograničen broj naloga / 100 istovremenih korisnika; 15 HDD za skladištenje;
Podržava N + M hot standby;
Specifikacije:
| Brand |
X-Security |
| Inputs for video channels |
Up to 2000 channels |
| Device inputs |
Up to 500 |
| PoE |
No |
| IP compatible cameras |
X-SECURITY (proprietary protocol), HIWATCH HIKVISION, SAFIRE, ONVIF (up to 100 devices) |
| Video outputs |
2 HDMI, 1 VGA |
| Input bandwidth |
700 Mbps |
| Output bandwidth |
700 Mbps |
| Storage bandwidth |
700 Mbps |
| Number of online users |
200 |
| Simultaneous multifunction |
Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Screen |
7" HD LCD (1080p) |
| Alarm |
16 inputs / 8 relay |
| Recording method |
Manual, programmed, motion detection, alarm |
| Internal memory |
16 SATA HDD 3.5" of up to 4 TB (not included). 1 HDD for the system and 15 for storage |
| Communication |
4 RJ45 10/100/1000M (Ethernet) simultaneous / independents |
| Remote access |
Web browser (ActiveX), mobile phone application or PSS software |
| Power |
AC 100~240 V, 50/60 Hz / 10~200W |
| Dimensions |
135 (H) x 485 (W) x 526 (D) mm / 20 Kg (without HDD) |
