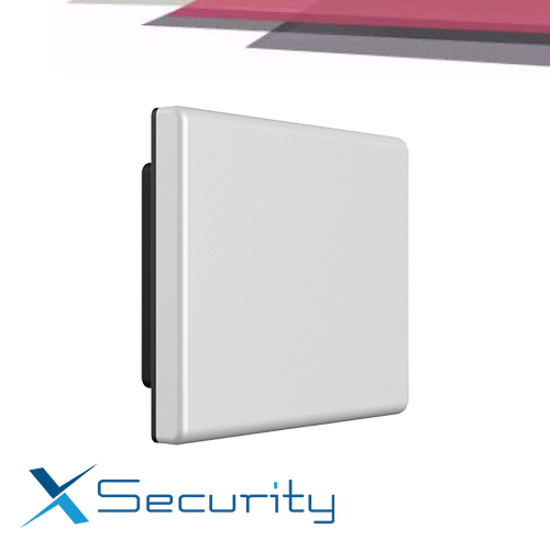

X-Security PFM861-B100 radar za detekciju ljudi i vozila
> Aktivna detekcija: 24-časovna kontinuirana detekcija.
> Stereo zaštita: stereo prostor, sveobuhvatna zaštita.
> Skeniranje u realnom vremenu: 8 puta elektronsko skeniranje u sekundi.
> Elektronski perimetar: slobodno podešavanje zaštitnog područja i vremena.
> Radar-PTZ rešenje za povezivanje: ostvarite savršenu kombinaciju videa i radara.
SPECIFIKACIJA:
| Basic Parameter |
| Radar type |
Radar system |
| Working frequency |
24.05~24.20GHz |
| Transmit power |
16dBm |
| Network interface |
RJ45 |
| Detecting mode |
Doppler, slow-moving, quick-through. |
| Detection Target |
| Target type |
Human/Vehicle/Animal |
| Max. target number |
32 |
| Detection Range |
| Distance |
Human(1.8mx0.5m) ≤100m(328.08ft) |
| Vehicle(2.3mx2.3m) ≤160m(524.93ft) |
| Angle(horizontal) |
90° |
| Angle(vertical) |
13°(-6dB) |
| Scan frequency |
8Hz |
| Installation height |
1～3m(3.28~9.84ft) |
| Radar Capability |
| Modulation type |
FMCW |
| Min. detection distance |
0.8m(2.62ft) |
| Distance accuracy |
1m(3.28ft) |
| Angle accuracy |
1° |
| Max. detection speed |
36km/h track continuous; 120km/h detectable |
| Environmental |
| Operating temperature |
-40℃~+75℃(-40℉~+167℉) |
| Operating humidity |
<90% RH |
| Protection degree |
IP66 |
| Construction |
| Material |
PC+ABS & aluminum |
| Dimension |
194mmx158mmx49mm(7.64”x6.22”x1.93”) |
| Weight |
1.06kg(2.34lb) |
