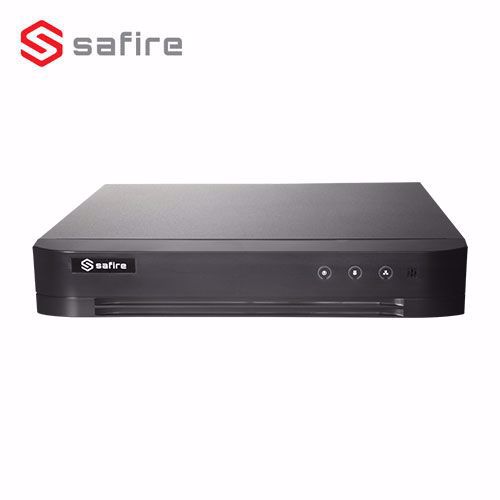

8 kanalni HDTVI/HDCVI/AHD/CVBS/ 8+8 IP XVR snimač za video nadzor
8MP Lite (u 8FPS) maksimalna rezolucija snimanja; H.265+ video kodek visoke efikasnosti; Podržava audio preko koaksijalnog kabla;
PTZ kontrola (RS485/koaksijalni); FullHD HDMI i VGA izlaz; 1 HDD SATA slot za internu memoriju;
Specifikacije:
| Video compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding resolution |
When 8 MP Lite mode is not enabled:
8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
When 8 MP Lite mode is enabled:
8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF |
| Frame rate |
Main stream:
When 8 MP Lite mode is not enabled:
8 MP@8 fps/5 MP@12 fps/3K@12 fps/4 MP@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1 of DS7104HUHIK1.
When 8 MP Lite mode is enabled:
8 MP Lite/3 MP/1080P/720P/WD1/4CIF/VGA/CIF@15 fps
*: 8 MP Lite is only available for DS7104HUHIK1.
Substream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video bit rate |
32 Kbps to 10 Mbps |
| Dual stream |
Support |
| Stream type |
Video Video & Audio |
| Audio compression |
G.711u |
| Audio bit rate |
64 Kbps |
| IP video input |
4ch (up to 12ch)
Enhanced IP mode on:
8ch (up to 16ch) each up to 4 Mbps
Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog video input |
8ch BNC interface (1.0 Vpp 75 ?) supporting coaxitron connection |
| AHD input |
5 MP 4 MP 1080p25 1080p30 720p25 720p30 |
| HDCVI input |
4 MP 1080p25 1080p30 720p25 720p30 |
| CVBS input |
PAL/NTSC |
| Audio input |
1ch RCA (2.0 Vpp 1 K?)8ch via coaxial cable |
| Audio output |
1ch RCA (Linear 1 K?) |
| Twoway audio |
1ch RCA (2.0 Vpp 1 K?) (using the first audio input) |
| Synchronous playback |
8ch |
| HDTVI input |
8 MP 5 MP 4 MP 3 MP 1080p30 1080p25 720p60 720p50 720p30 720p25 |
| VGA/HDMI output |
HDMI: 1ch 4K (3840 2160)/30Hz 2K (2560 1440)/60Hz 1920 1080/60Hz 1280 1024/60Hz 1280 720/60Hz 1024 768/60HzVGA: 1ch 1920 1080/60Hz 1280 1024/60Hz 1280 720/60Hz 1024 768/60Hz |
| Remote connections |
64 |
| Network protocols |
TCP/IP PPPoE DHCP Safire Connect DNS DDNS NTP SADP NFS iSCSI UPnP HTTPS ONVIF |
| Network interface |
1 RJ45 10M/100M/1000M selfadaptive Ethernet interface |
| Network bandwidth |
64Mbps |
| SATA |
1 SATA interface |
| Capacity |
Up to 6 TB capacity for each disk |
| Alarm in/out |
N/A |
| USB interface |
2 USB 2.0 |
| Power supply |
12 VDC |
| Consumption (without HDD) |
< 15 W |
| Working temperature |
10 C to +55 C (+14 F to +131 F) |
| Working humidity |
10% to 90% |
| Dimensions (W D H) |
200 200 45 mm (7.9 7.9 1.8 inch) |
| Weights (without HDD) |
< 2 kg (4.4 lb) |
