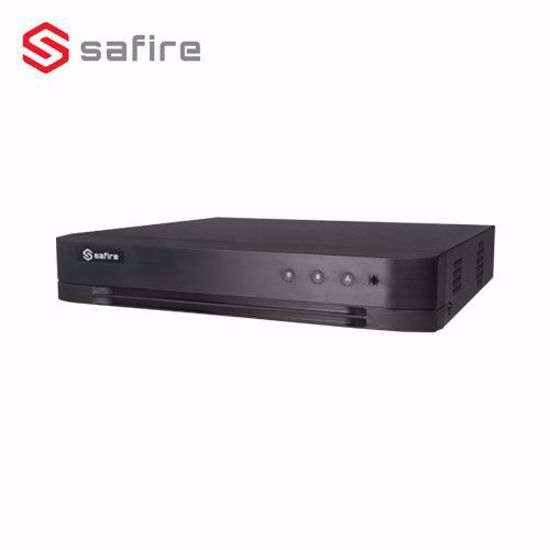

Safire SF-XVR8104S-4KL
4-kanalni HDTVI/HDCVI/AHD/CVBS/ 4+4 IP snimač rezolucije snimanja 8MP (8FPS) Encoding capability: H.265+ High Efficiency Video Codec; Podržava Audio preko koaksijalnog kabla; PTZ kontrola (RS485/Coaxial); FullHD HDMI i VGA izlazi; 1 HDD SATA slot za interno skladištenje.
SPECIFIKACIJE:
| Video compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding resolution |
8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame rate |
Main stream: 8MP@8fps/5MP@12fps/4 MP@15fps/3 MP@18fps1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)Substream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video bit rate |
32 Kbps to 10 Mbps |
| Dual stream |
Support |
| Stream type |
Video Video & Audio |
| Audio compression |
G.711u |
| Audio bit rate |
64 Kbps |
| IP video input |
4ch (up to 8ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog video input |
4ch BNC interface (1.0 Vpp 75 ?) supporting coaxitron connection |
| AHD input |
5 MP 4 MP 1080p25 1080p30 720p25 720p30 |
| HDCVI input |
4 MP 1080p25 1080p30 720p25 720p30 |
| CVBS input |
PAL/NTSC |
| Audio input |
1ch RCA (2.0 Vpp 1 K?) / / Audio over coaxial from camera |
| Audio output |
1ch RCA (Linear 1 K?) |
| Twoway audio |
1ch RCA (2.0 Vpp 1 K?) (using the first audio input) |
| Synchronous playback |
4ch |
| HDTVI input |
8 MP 5 MP 4 MP 3 MP 1080p30 1080p25 720p60 720p50 720p30 720p25 |
| VGA/HDMI output |
1ch 1920 1080/60Hz 1280 1024/60Hz 1280 720/60Hz 1024 768/60Hz |
| Remote connections |
32 |
| Network protocols |
TCP/IP PPPoE DHCP Safire Connect DNS DDNS NTP SADP NFS iSCSI UPnP HTTPS ONVIF |
| Network interface |
1 RJ45 10M/100M selfadaptive Ethernet interface |
| Network bandwidth |
32Mbps |
| SATA |
1 SATA interface |
| Capacity |
Up to 6 TB capacity for each disk |
| Alarm in/out |
N/A |
| USB interface |
2 USB 2.0 |
| Power supply |
12 VDC |
| Consumption (without HDD) |
< 15 W |
| Working temperature |
10 C to +55 C (+14 F to +131 F) |
| Working humidity |
10% to 90% |
| Dimensions (W D H) |
200 200 45 mm (7.9 7.9 1.8 inch) |
| Weights (without HDD) |
< 1.16 kg (2.6 lb) |
