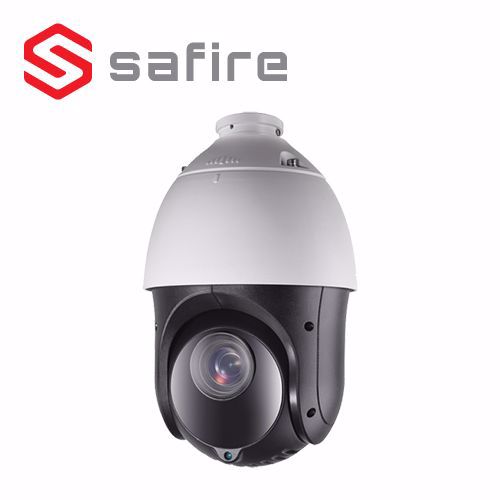

Safire SF-SD6025IW-F4N1 PTZ kamera 2MP
- FullHD 2MP PTZ kamera, 1/2.8” CMOS sa progresivnim skeniranjem, 4u1 (TVI, AHD, CVI ili analogna) sa IC diodama. Maksimalna rezolucija 2MP (1920x1080@30fps), H.265+/H.265 video kompresija, min. osvetljenje kolor: 0.005 Lux @(F1.6, AGC ON), motorizovani varifokalni objektiv 4.8-120mm, 25x optički zum, 16x digitalni zum, WDR 120dB, HLC, BLC, 3D DNR, Defog, EIS, Regional Focus, smart IC diode dometa do 100m, 12 VDC. OSD meni.
256 preset podešavanja, 5 auto pattern-a, 10 auto tour-a, auto pan, auto scan funkcije.
Komunikacija: RS485, Pelco P / Pelco D / SAFIRE
Audio: Ne
Alarm: Ne
Napajanje: DC 12 V / 2 A
Radna temperatura: -30? C ~ +65? C
Stepen zaštite: IP66 / Surges 4000V
Dimenzije: (bez nosača): 295 mm (V) x 165 (?) mm
Težina (bez nosača): 2000 g
Specifikacije:
| Zoom Speed |
Approx. 3.2 s (optical, wide to tele) |
| Working Distance |
10 mm to 1000 mm (wide to tele) |
| Aperture Range |
F 1.6 to F 3.5 |
| Horizontal Field of View |
57.6° to 2.5° (wide-tele) |
| Focal Length |
4.8 mm to 120 mm, 25× Optical |
| Max. Resolution |
1920 × 1080 |
| Frame Rate |
50Hz: 25fps @(1920 × 1080),60Hz: 30fps @(1920 × 1080) |
| AGC |
AUTO/MANUAL |
| DNR |
3D DNR |
| Regional Focus |
Yes |
| Image Sensor |
1/2.8" progressive scan CMOS |
| Model |
DS-2AE4225TI-D(C) |
| Min. Illumination |
Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 lux with IR |
| White Balance |
AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR |
| Shutter Time |
PAL: 1/1 s to 1/10,000 s,NTSC: 1/1 s to 1/10,000 s |
| Day & Night |
IR cut filter |
| Digital Zoom |
16× |
| Privacy Mask |
8 programmable privacy masks |
| Focus Mode |
Auto/Semiauto/Manual |
| WDR |
≥ 120 dB |
| BLC |
Yes |
| HLC |
Yes |
| EIS |
Yes |
| Movement Range (Pan) |
360° endless |
| Pan Speed |
Pan manual speed: 0.1° to 80°/s,Pan preset speed: 80°/s |
| Movement Range (Tilt) |
-15° to 90° (auto flip) |
| Tilt Speed |
Tilt manual speed: 0.1° to 80°/s,Tilt preset speed: 80°/s |
| Proportional Zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
| Presets |
256 |
| Patrol Scan |
10 patrols, up to 32 presets per patrol |
| Pattern Scan |
5 patterns, with the total recording time no less than 10 minutes |
| Power-off Memory |
Yes |
