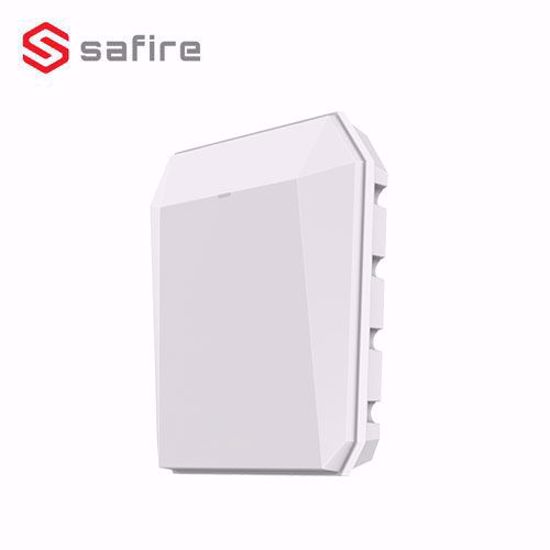

Safire SF-RADAR-60Y radar
Radar za detekciju upada u štićeni prostor. Detektuje pokret na udaljenosti od 60m. Ugao pokrivenosti 100º. Moguće je povezati do 4 PTZ kamere na radar i time proširiti funkcije detekcije. Detektuje objekte pri brzinama do 313 Km/h.
Specifikacije:
| Brand |
Safire |
| Work frequency |
24 GHz |
| Transmission power |
20 dBm |
| Communication interface |
RJ45 10/100M |
| Max. Max. target number |
32 |
| Detection distance |
60m (Configurable) |
| Detection angle |
100º (Configurable) |
| Installation height |
1.2 ~ 4 m |
| Type of modulation |
FMCW |
| Accuracy of measurement |
± 0.75 m |
| Angle accuracy |
± 1 º |
| Velocity range |
313 Km/h |
| Speed accuracy |
± 0.1 m/s |
| Alarms |
8 Alarm Zones / 4 Relays |
| Calibration Software |
Safire Control Center Radar |
| Temp. operation |
-40 ~ 65 °C |
| Power |
12VDC, 6W / IEEE802.3at PoE |
| Degree of protection |
IP67 |
| Anti-Corrosion |
NEMA 4X |
| Dimensions |
228 mm (h) x 206 mm (w) x 61 (d) |
| Weight |
1.84 Kg |
