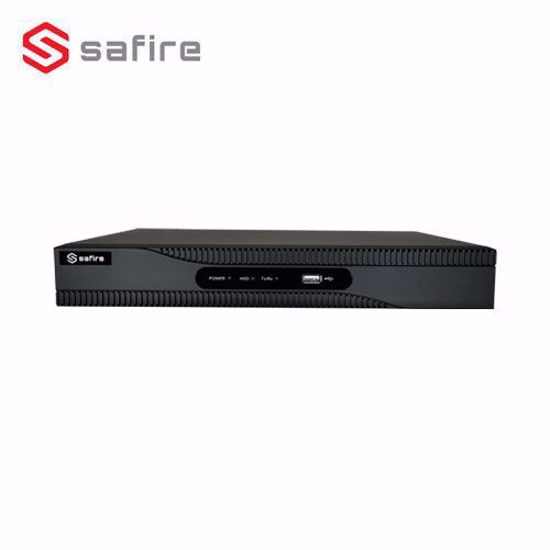

Safire SF-NVR6208-A8P-4K mrezni snimac 8CH 8MP
Specifikacije:
| IP Video Input |
8-ch |
| HDMI Output |
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Incoming Bandwidth |
80 Mbps |
| Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Decoding Format |
H.265/H.265+/H.264/H.264+/MPEG4 |
| Decoding Capability |
2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps) |
| Synchronous playback |
8-ch |
| Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Network Protocol |
TCP/IP, DHCP, Safire Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface |
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Interface |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power |
≤ 120 W |
| Standard |
IEEE 802.3 af/at |
| RAID Type |
No |
| SATA |
2 SATA interfaces |
| Capacity |
Up to 6 TB capacity for each HDD |
| USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out |
4/1 |
| Power Supply |
100 to 240 VAC,≤ 180 W |
| Consumption |
≤ 15 W (without enabling PoE) |
| Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity |
10 to 90 % |
| Dimension (W × D × H) |
385 × 315× 52 mm (15.2" × 12.4" × 2.0") | ≤ 3 kg (6.6 lb) |
