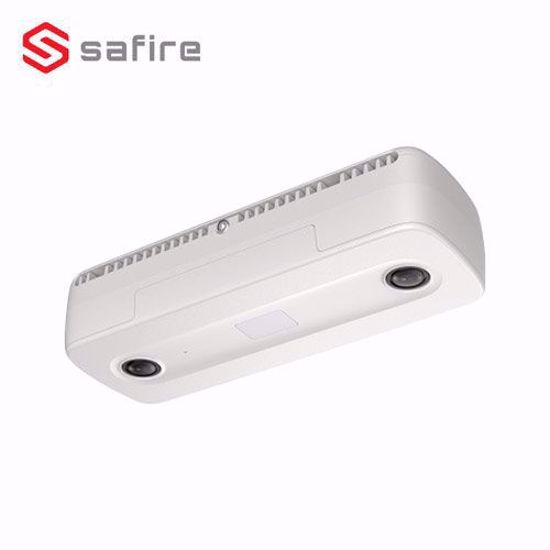

Safire SF-IPCOUNT-Y0200 people counting kamera
Specifikacije:
| Brand |
Safire |
| Image sensor |
1/2.7” Progressive Scan CMOS |
| Maximum resolution |
1920 x 1080 |
| Main Stream rate |
1920 x 1080 (1 ~ 30 FPS) |
| Compression |
H.265+ / H265 / H.264+ / H.264 |
| Day / Night |
Auto / Programmable / Manual |
| Infrared Illumination |
6 m |
| Bitrate |
32 Kbps ~ 8 Mbps |
| Lens |
2 mm (H: 104º, V: 70.5º) |
| Functions |
3D-DNR, BLC, DWDR |
| Communication interface |
1 x Ethernet 10/100M BaseT |
| Alarms |
1 input / 1 output (Supports up to 24 VDC, 1 A) |
| Audio |
Integrated microphone |
| People counting |
Statistics of entries, exits and transit | Daily, weekly, monthly and annual reports |
| Other functions |
Height Filter | Door Status Indicator |
| Recommended Installation |
Installation height: 2.1 m | Detection area: 1.02 m
Installation height: 2.6 m | Detection area: 2.30 m
Installation height: 3.1 m | Detection area: 3.58 m
Installation height: 3.6 m | Detection area: 4.86 m
Installation height: 4.1 m | Detection area: 5.50 m
Installation height: 4.6 m | Detection area: 6.14 m
Installation height: 5.1 m | Detection area: 6.45 m
Installation height: 5.6 m | Detection area: 7.40 m
Installation height: 6.0 m | Detection area: 8.16 m |
| Remote access |
Web browser, Safire Control Center Smartphone App and PC Software |
| Interoperability |
ONVIF |
| Power |
DC 12 V / 600 mA, PoE (IEEE802.3af) |
| Temp. operation |
-30º C ~ +60º C |
| Degree of protection |
Interior |
| Material |
Body: Metallic |
| Dimensions |
61 (H) x 168 (W) x 36 (D) mm |
| Base dimensions |
152 x 69 mm / 4 screws |
| Weight |
450 g |
