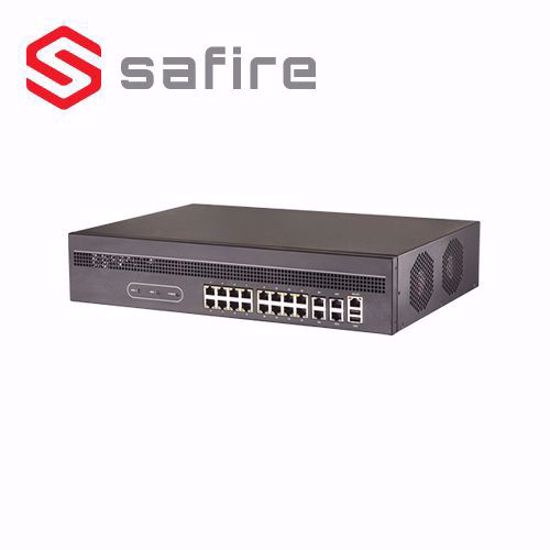

Safire SF-DEC7912H-4K dekoder
Safire Dekoder;
96 kanala / 16+2 Ethernet porta RJ45;
Maks. rezolucija 24MP;
Bandwidth 256 Mbps;
12 HDMI izlaza 4K;
ONVIF kompatibilan;
Specifikacije:
| Input |
VGA, DVI-I |
| Input Resolution |
VGA, DVI-I: 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz |
| Output |
HDMI × 12, BNC × 6 (DB15 × 2) |
| Output Resolution |
HDMI: <br/>4K: 3840 × 2160@30 Hz ( for odd interface only) , 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz<br/>BNC: <br/>PAL: 704 × 576, NTSC: 704 × 480 |
| Decoding Resolution |
Up to 24MP (only for 3 encoder tracks mode) |
| Decoding Channel |
96-ch |
| Decoding Capability |
24MP@30fps: 6-ch,<br/>12MP@20fps: 12-ch,<br/>8MP@30fps: 24-ch,<br/>5MP@30fps: 36-ch,<br/>3MP@30fps: 60-ch,<br/>1080p@30fps: 96-ch |
| Split Screen |
1/4/6/8/9/12/16/25/36 |
| Network Interface |
RJ45 interface × 2, 10/100/1000 Mbps adaptive<br/>Optic interface × 2, 100 base-FX/1000 base-X<br/>An RJ45 interface and an optic interface form a combo. |
| Serial Interface |
RS-232 (RJ45) × 1, RS-485 × 1 |
| Two-way Audio Out |
1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ) |
| Two-way Audio In |
1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ) |
| Alarm In |
8 |
| Audio Output |
12 (DB15 × 2) |
| Alarm Out |
8 |
| Power Supply |
100 to 240 VAC |
| Power Consumption |
≤ 108 W |
| Dimensions(W × D × H) |
440 mm × 321 mm × 88 mm (17.32 inch × 12.64 inch × 3.46 inch) |
| Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity |
10% to 90% |
| |
≤ 6.4 kg (14.11 lb) |
