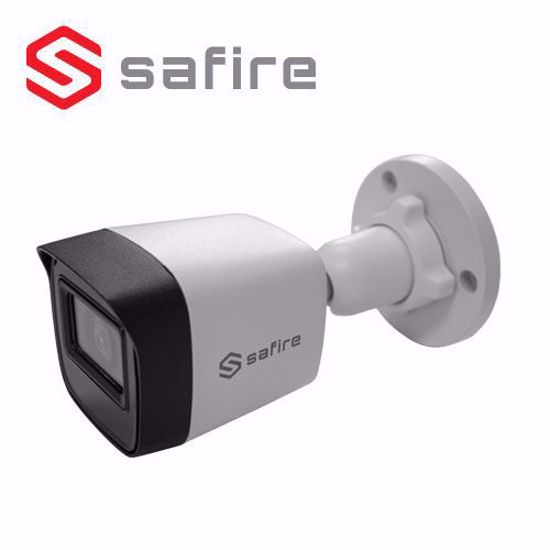

Safire SF-B022-5P4N1 4u1 bullet kamera
5 Megapikselna kamera, rezolucija snimanja: 2560×1944@20fps, 4MP@30fps.
Fiskni objektiv 2.8mm;
Osetljivost: Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux sa uključenim IR diodama;
Signalni prekidač: TVI/AHD/CVI/CVBS;
IC osvetljenje: Smart IR, do 30m IR udaljenosti;
Ostale karaktersike: 2D DNR, DWDR, AGC, BLC, HLC;
Napajanje i potrošnja: 12V DC, 3.7W;
Radna temperatura: -40 C do +60 C
Nivo zaštite: IP67;
Kućište: Metal;
Dimenzije: 138.8(D) x 61(Š) x 58(V)mm
Težina: 258g;
Specifikacije:
| Image Sensor |
5 MP CMOS |
| Max. Resolution |
2560 (H) × 1944 (V) |
| Min. Illumination |
Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time |
PAL: 1/25 s to 1/50, 000 s<br/>NTSC: 1/30 s to 1/50, 000 s |
| Day & Night |
ICR |
| Angle Adjustment |
Pan: 0 to 360°, Tilt: 0 to 90°, Rotation 0 to 360° |
| Signal System |
PAL/NTSC |
| Lens Type |
2.8 mm fixed lens |
| Focal Length & FOV |
horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110° |
| Lens Mount |
M12 |
| Image Parameters Switch |
STD/HIGH-SAT |
| Image Settings |
Brightness, Sharpness, Mirror, Smart IR |
| Frame Rate |
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps<br/>AHD: 5M@20fps, 4M@30fps, 4M@25fps<br/>CVI: 4M@30fps, 4M@25fps<br/>CVBS: PAL/NTSC |
| Day/Night Mode |
Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) |
Digital WDR |
| Image Enhancement |
BLC, HLC |
| White Balance |
ATW/MANUAL |
| AGC |
Support |
| Video Output |
1 HD analog output |
| Material |
Metal |
| Dimension |
60.9 mm × 57.9 mm × 138.8 mm (2.39" × 2.28" × 5.47") |
| |
Approx. 258 g (0.35 lb.) |
| Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication |
Safire-C |
| Language |
English |
| Power Supply |
12 VDC ±25% |
| Consumption |
Max. 4.3 W |
| IR Range |
Up to 30 m |
| Protection |
IP67 |
