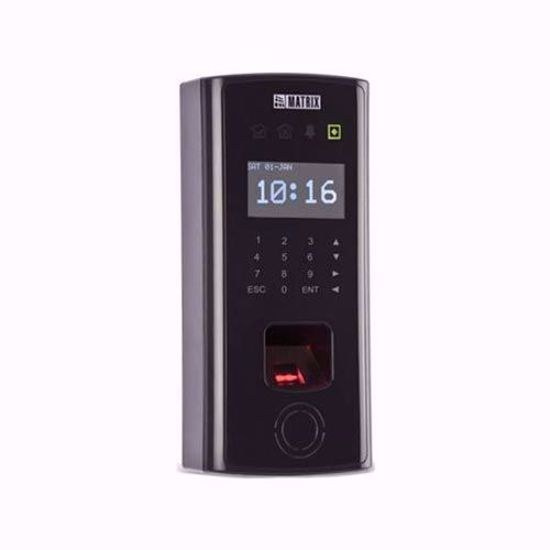

Matrix COSEC DOOR FOPW terminal za ERV i KP
COSEC DOOR FOP, konvencionalni kontroler vrata, može se koristiti za različite aplikacije kao što su kontrola pristupa, praćenje radnog vremena, upravljanje posetiocima, upravljanje kafeterijom, upravljanje pristupom vozilima i upravljanje radnicima po ugovoru.
COSEC DOOR FOP je kontroler vrata, koji ima 128*64 matrix ekran sa tastaturom sa senzorom na dodir. Može da uskladišti do 9.600 šablona otiska prsta i 5.00.000 događaja. Štaviše, sa Ethernet, Wi-Fi i 3G/4G povezivanjem, ovaj uređaj nudi dodatnu fleksibilnost u dizajniranju bezbednosnog rešenja uz smanjenje troškova instalacije i održavanja. Ovaj sistem za ulaz na vrata zasnovan na RFID kartici ili otisku prsta može raditi u mreži ili samostalno. Nudi različite interfejse kao što su izlazni čitač, izlazni prekidač, pomoćni ulazni/izlazni port i USB port.
Specifikacije:
| Variants | COSEC DOOR FOPW |
|---|
| Credential Support |
Finger, Card and PIN |
| Display |
128 x 64 Dot Matrix Display |
| Keypad |
16 Touch Sense Keys |
| User Capacity |
50,000 (Max. 9600 in 1:N Mode) |
| Template Per User |
Up to Ten (Single Template per Finger Mode) or Up to Five (Dual Template per Finger Mode) |
| Template Storage Capacity |
9600 in 1:N Mode and 1 lac in 1:1 Mode |
| Cards Per User |
Up to Two |
| Event Buffer |
5,00,000 |
| Types of Cards Support |
Proximity Card (EM Prox and HID Prox) and Smart Card (MIFARE Classic® and HID iCLASS) (Card Module Required) |
| Mobile Broadband |
Yes (2G/3G Support) |
| RS-485 |
Yes (115.2 Kbps) |
| Ethernet |
Yes (10/100 Mbps on Ethernet) |
| Exit Switch |
Yes |
| Door Status Sense |
Programmable NO, NC and Supervised |
| Door Lock Relay |
Form C, SPDT Relay (Max 2A@30 VDC) |
| Door Lock Power |
Internal 12VDC @ 0.5A or External |
| Aux-IN |
Programmable NO, NC and Supervised |
| Aux-OUT |
Form C, SPDT Relay (Max 2A @ 30VDC) |
| Reader Interface types |
RS-232, and Wiegand IN only |
| Reader Types |
1 Port for Card Reader/Finger Reader/Card Finger Combo Reader/Third Party Wiegand reader |
| USB |
2 USB Ports (1 for Data Transfer and 1 for 2G-3G Dongle) |
| Buzzer |
Yes |
| LED |
4 LEDs (Status, Alarm, Allowed, Denied) |
| CPU |
400 MHz ARM 9 based Processor |
| Flash Memory |
256MB Flash |
| RAM Memory |
128MB DDR2 |
| Input Power |
12VDC @ 2A |
| Reader Power Output |
Internal 12 VDC @ 0.5 A or External |
| Battery Backup |
No |
| Humidity |
5% to 85% RH Non-condensing |
| Operating Temperature |
0°C to + 50°C (32°F to 122°F) |
| Tamper Detection |
Yes |
| Certification |
CE and RoHS |
| STQC |
No |
| Dimension (mm) |
100X220X56 |
| Weight (kgs) |
0.65 |
