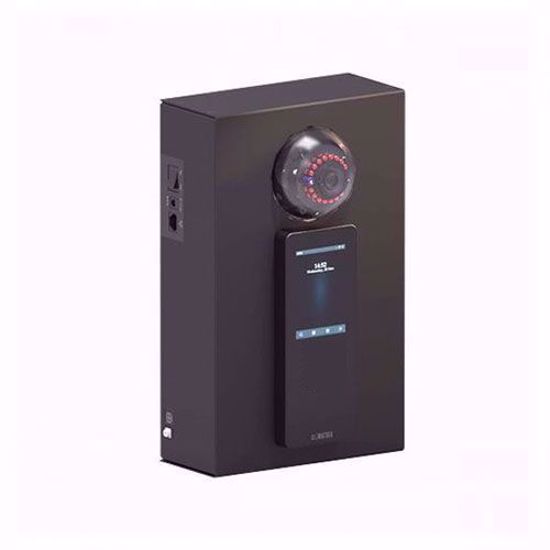

Matrix COSEC COGNIFACE Integra100M terminal za ERV i KP
Terminal za kontrolu pristupa i evidenciju radnog vremena sa ugrađenim čitačem MIFARE Classic, DESFire EV1 i EV2 kartica.
Specifikacije:
| Credentials Supported |
|---|
| Human Face |
Yes |
| PIN |
Yes |
| Card |
Yes. Multiple:
1) COGNIFACE INTEGRA100E - EM Prox
2) COGNIFACE INTEGRA100M- MIFARE Classic, DESFire EV1 and EV2 (Read/Write)
3) COGNIFACE INTEGRA100I - HID iClass Card Support (Read/Write)
HID Prox, EM Prox, Desfire EV1 & EV2 (CSN Read) and Mifare Classic (CSN Read) |
| Fingerprint |
No |
| BLE - Mobile |
Yes |
| Capacity |
|---|
| User Profiles |
50,000 |
| Face Templates |
1,00,000 |
| Face Templates Per User |
Max. 30 |
| Event Logs |
5,00,000 |
| Face Recognition |
|---|
| Algorithm |
Deep Learning based Face Recognition |
| Face Identification |
1:100,000 in < 1 sec.
1:1 in < 0.5 sec.
Group FR: Max. 4 Faces per frame |
| Face Enrollment |
1. Face Recognition Terminal
2. Enrolment Station
3. Upload Images
4. Exception Faces |
| Battery Backups |
|---|
| Type |
Li-Ion |
| Capacity |
3000 mAh |
| Backup time |
Upto 2 Hours |
| General Specification |
|---|
| Dimensions (H X W X D) |
311mm X 193 mmX 85mm
(12.2” X 7.6” X 3.3”) |
| Weight |
2.8KG (6.17 lbs) |
| Display |
3.5" IPS LCD (Touch Screen) |
| Display Resolution |
480 x 320 Pixel |
| Gorilla Glass |
Yes (Gorilla glass 3) |
| CPU |
Terminal CPU: 800 MHz ARM Cortex A8 Based Processor
Face Processing Unit: Quad-core Cortex-A72 (ARM V8) 64-Bit SOC @1.5GHz |
| RAM |
Terminal RAM: 512MB
Face Processing Unit: 2GB |
| SD Card |
Terminal: 16 GB
Face Processing Unit: 16 GB |
| Tamper Detection |
No |
| Speaker |
No |
| Buzzer |
No |
| IR LEDs |
No |
| Ingress Protection (IP) |
Yes |
| Vandal Proof (Ik) |
Yes |
| Certificate |
CE, FCC, BIS |
| Operating Temperature |
0 °C - 45 °C |
| Humidity |
5% to 95 % RH Non-Condensing |
| Camera |
|---|
| Camera Type |
2MP Surveillance Grade |
| Camera Sensors |
SONY IMX 307, EXMOR Technology, STARVIS Series |
| ONVIF Support |
Yes |
| CODEC/Stream |
H.264/H.265/MJPEG |
| Live Stream |
Yes (Binding With Access Events) |
| Ethernet |
Yes (10/100 Mbps) |
| WiFi |
Yes (802.11 b/g/n) |
| BLE |
Yes (8m Range) |
| Interface |
|---|
| Exit Switch Interface |
Yes |
| External Reader Support |
Yes (MATRIX and 3rd Party) |
| External Reader |
Interface
Power
LED and Buzzer Control
- Allowed - GREEN LED
- Buzzer
|
| Wiegand |
Yes (Selectable IN/OUT)
IN: 26 Bit format
OUT: Configurable |
| Door Lock Relay |
Yes (30VDC @ 2A, Dry Contacts NO/NC/COM) |
| Door Lock Power |
Internal Adapter Power 12VDC @ 0.5 A
External Power 12VDC @ 2A |
| AUX IN / AUX OUT |
NO |
| Installation |
|---|
| Wall Mount |
Yes |
| Flush Mount |
No |
| Accessories |
|---|
| Power Adapter |
12VDC @ 2A (CE, FCC, UL, BIS) |
| Mounting Options |
Surface Mount |
| Built-IN Battery Backup |
Yes |
