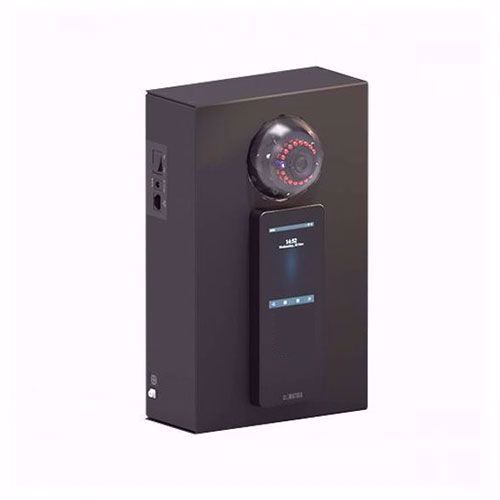

Matrix COSEC COGNIFACE Integra100I terminal za ERV i KP
COSEC COGNIFACE INTEGRA serija, inteligentni terminal za prepoznavanje lica dizajniran da zadovolji izazovne zahteve organizacija! Primena najnovije beskontaktne tehnologije obezbeđuje optimalnu propusnost dok istovremeno obezbeđuje najviši nivo bezbednosti.
COSEC COGNIFACE INTEGRA kombinuje sve elemente koji se koriste za prepoznavanje lica u robustan dizajn metalnog kućišta sa svim bitnim kontrolama kao što su IP konekcija, napajanje i prekidači za baterije. I to ga čini paketom za različite vertikale kao što su proizvodnja, vlada, preduzeća, farmaceutska industrija, maloprodaja i ugostiteljstvo.
Specifikacije:
Credentials Supported |
Human Face |
Yes |
PIN |
Yes |
Card |
Yes. Multiple: 1) COGNIFACE INTEGRA100E - EM Prox 2) COGNIFACE INTEGRA100M- MIFARE Classic, DESFire EV1 and EV2 (Read/Write) 3) COGNIFACE INTEGRA100I - HID iClass Card Support (Read/Write) HID Prox, EM Prox, Desfire EV1 & EV2 (CSN Read) and Mifare Classic (CSN Read) |
Fingerprint |
No |
BLE - Mobile |
Yes |
Capacity |
User Profiles |
50,000 |
Face Templates |
1,00,000 |
Face Templates Per User |
Max. 30 |
Event Logs |
5,00,000 |
Face Recognition |
Algorithm |
Deep Learning based Face Recognition |
Face Identification |
1:100,000 in < 1 sec. 1:1 in < 0.5 sec. Group FR: Max. 4 Faces per frame |
Face Enrollment |
1. Face Recognition Terminal 2. Enrolment Station 3. Upload Images 4. Exception Faces |
Battery Backups |
Type |
Li-Ion |
Capacity |
3000 mAh |
Backup time |
Upto 2 Hours |
General Specification |
Dimensions (H X W X D) |
311mm X 193 mmX 85mm (12.2” X 7.6” X 3.3”) |
Weight |
2.8KG (6.17 lbs) |
Display |
3.5" IPS LCD (Touch Screen) |
Display Resolution |
480 x 320 Pixel |
Gorilla Glass |
Yes (Gorilla glass 3) |
CPU |
Terminal CPU: 800 MHz ARM Cortex A8 Based Processor Face Processing Unit: Quad-core Cortex-A72 (ARM V8) 64-Bit SOC @1.5GHz |
RAM |
Terminal RAM: 512MB Face Processing Unit: 2GB |
SD Card |
Terminal: 16 GB Face Processing Unit: 16 GB |
Tamper Detection |
No |
Speaker |
No |
Buzzer |
No |
IR LEDs |
No |
Ingress Protection (IP) |
Yes |
Vandal Proof (Ik) |
Yes |
Certificate |
CE, FCC, BIS |
Operating Temperature |
0 °C - 45 °C |
Humidity |
5% to 95 % RH Non-Condensing |
Camera |
Camera Type |
2MP Surveillance Grade |
Camera Sensors |
SONY IMX 307, EXMOR Technology, STARVIS Series |
ONVIF Support |
Yes |
CODEC/Stream |
H.264/H.265/MJPEG |
Live Stream |
Yes (Binding With Access Events) |
Ethernet |
Yes (10/100 Mbps) |
WiFi |
Yes (802.11 b/g/n) |
BLE |
Yes (8m Range) |
Interface |
Exit Switch Interface |
Yes |
External Reader Support |
Yes (MATRIX and 3rd Party) |
External Reader |
Interface
Power
LED and Buzzer Control
- Allowed - GREEN LED
- Buzzer
|
Wiegand |
Yes (Selectable IN/OUT) IN: 26 Bit format OUT: Configurable |
Door Lock Relay |
Yes (30VDC @ 2A, Dry Contacts NO/NC/COM) |
Door Lock Power |
Internal Adapter Power 12VDC @ 0.5 A External Power 12VDC @ 2A |
AUX IN / AUX OUT |
NO |
Installation |
Wall Mount |
Yes |
Flush Mount |
No |
Accessories |
Power Adapter |
12VDC @ 2A (CE, FCC, UL, BIS) |
Mounting Options |
Surface Mount |
Built-IN Battery Backup |
Yes |
