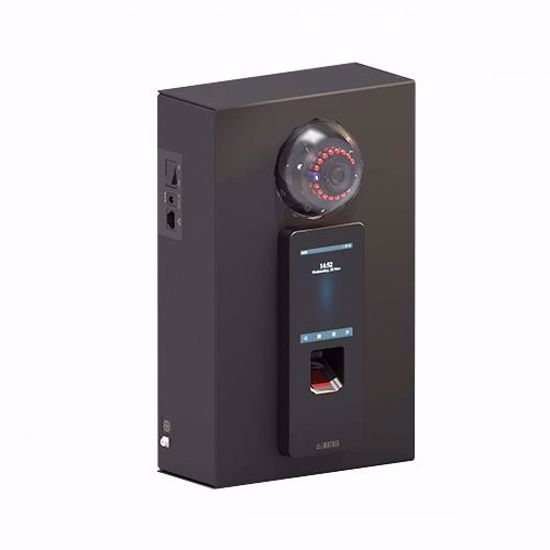

Matrix COSEC COGNIFACE INTEGRA 200M terminal za ERV i KP
COSEC COGNIFACE INTEGRA serija, inteligentni terminal za prepoznavanje lica dizajniran da zadovolji izazovne zahteve organizacija. Primena najnovije beskontaktne tehnologije obezbeđuje optimalnu propusnost dok istovremeno obezbeđuje najviši nivo bezbednosti.
COSEC COGNIFACE INTEGRA serija terminala kombinuju sve elemente koji se koriste za prepoznavanje lica u robustan dizajn metalnog kućišta sa svim bitnim kontrolama kao što su IP konekcija, napajanje i prekidači za baterije. I to ga čini paketom za različite vertikale kao što su proizvodnja, vlada, preduzeća, farmaceutska industrija, maloprodaja i ugostiteljstvo.
Specifikacije:
| Credentials Supported |
|---|
| Human Face |
Yes |
| PIN |
Yes |
| Card |
Yes. Multiple:
1) COGNIFACE INTEGRA200E - EM Prox
2) COGNIFACE INTEGRA200M- Mifare/Desfire
3) COGNIFACE INTEGRA200I- HID i- Class, MIFARE/Desfire |
| Fingerprint |
Yes |
| BLE - Mobile |
Yes |
| Capacity |
|---|
| User Profiles |
50,000 |
| Face Templates |
1,00,000 |
| Fingerprint Templates |
1:N Mode: 25,000
1:1 Mode: 100,000 |
| Face Templates Per User |
Max. 30 |
| Fingerprint Template Per User |
Max. 10 |
| Event Logs |
5,00,000 |
| Face Recognition |
|---|
| Algorithm |
Deep Learning based Face Recognition |
| Face Identification |
1:100,000 in < 1 sec.
1:1 in < 0.5 sec.
Group FR: Max. 4 Faces per frame < 3 sec |
| Face Enrollment |
Face Recognition Terminal
Enrolment Station
Upload Images
Exception Faces |
| Fingerprint Sensor |
|---|
| Sensor Type |
Optical |
| Sensor Name |
Suprema SFM6030 |
| Sensor Surface |
Scratch Free |
| Resolution |
500 DPI |
| Image Size |
288 X 288 |
| Sensing Area |
16.0mm X 18.0mm |
| Finger Data Encryption |
256-Bit AES |
| ERR |
<0.08% |
| Battery Backups |
|---|
| Type |
Li-Ion |
| Capacity |
3000 mAh |
| Backup time |
Upto 2 Hours |
| General Specification |
|---|
| Dimensions (H X W X D) |
311mm X 193 mmX 85mm
(12.2” X 7.6” X 3.3”) |
| Weight |
2.8KG (6.17 lbs) |
| Display |
3.5" IPS LCD (Touch Screen) |
| Display Resolution |
480 x 320 Pixel |
| Gorilla Glass |
Yes (Gorilla glass 3) |
| CPU |
Terminal CPU: 800 MHz ARM Cortex A8 Based Processor
Face Processing Unit: Quad-core Cortex-A72 (ARM V8) 64-Bit SOC @1.5GHz |
| RAM |
Terminal RAM: 512MB
Face Processing Unit: 2GB |
| SD Card |
Terminal: 16 GB
Face Processing Unit: 16 GB |
| Tamper Detection |
No |
| Speaker |
No |
| Buzzer |
Yes |
| IR LEDs |
Yes |
| Ingress Protection (IP) |
No |
| Vandal Proof (Ik) |
No |
| Certificate |
CE, FCC, BIS |
| Operating Temperature |
0 °C - 45 °C |
| Humidity |
5% to 85 % RH Non-Condensing |
| Camera |
|---|
| Camera Type |
2MP Surveillance Grade |
| Camera Sensors |
SONY IMX 307, EXMOR Technology, STARVIS Series |
| ONVIF Support |
Yes |
| CODEC/Stream |
H.264/H.265/MJPEG |
| Live Stream |
Yes (Binding With Access Events) |
| Snapshots |
Yes |
| Communication |
|---|
| Ethernet |
Yes (10/100 Mbps) |
| WiFi |
Yes (802.11 b/g/n) |
| BLE |
Yes (8m Range) |
| Interface |
|---|
| Exit Switch Interface |
Yes |
| External Reader Support |
Yes (MATRIX and 3rd Party) |
| External Reader |
Interface
Power
LED and Buzzer Control
- Allowed - GREEN LED
- Buzzer
|
| Wiegand |
Yes (Selectable IN/OUT)
IN: 26 Bit format
OUT: Configurable |
| Door Lock Relay |
Yes (30VDC @ 2A, Dry Contacts NO/NC/COM) |
| Door Lock Power |
Internal Adapter Power 12VDC @ 0.5 A
External Power 12VDC @ 2A |
| AUX IN / AUX OUT |
NO |
| Installation |
|---|
| Wall Mount |
Yes |
| Flush Mount |
No |
| Accessories |
|---|
| Power Adapter |
12VDC @ 2A (CE, FCC, UL, BIS) |
| Mounting Options |
Surface Mount |
| Built-IN Battery Backup |
Yes |
