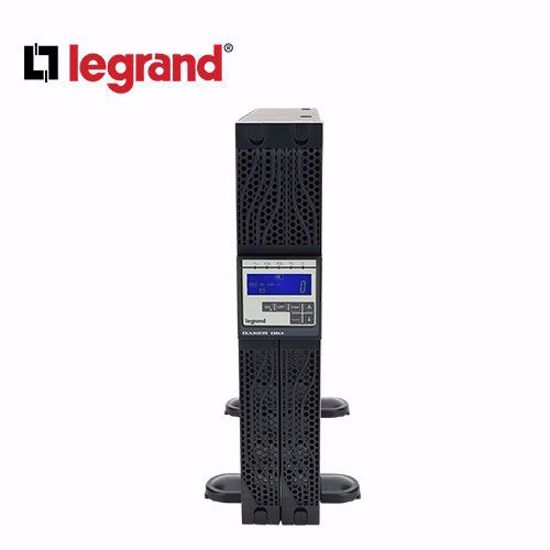

LEGRAND UPS DAKER DK+Tower/Rack, 1000VA/900W, 6 uticnica
| UPS Technology |
Double Conversion Online |
| Output Power Capacity |
800 W |
| Maximum Electrical Power Rating |
1000 VA |
| Nominal Output Voltage |
230 V |
| Voltage Phase |
Single |
| Status Notification Method |
Alarm
LCD |
| Circuit Protection |
Over Temperature
Over Load |
| Status Alert Condition |
Bypass
Fault |
| Power Features |
Automatic Voltage Regulator |
| Output Waveform |
Sinusoidal Wave |
| Maximum Output Voltage |
230 V |
| Maximum Output Frequency |
60 Hz |
| Minimum Output Frequency |
50 Hz |
| Output Power Connectors Quantity |
6 |
| Output Power Connectors Type |
IEC-320 C13 |
| Maximum Input Voltage |
288 V |
| Minimum Input Voltage |
160 V |
| Maximum Input Frequency |
60 Hz |
| Minimum Input Frequency |
50 Hz |
| Input Power Connectors Quantity |
1 |
| Input Power Connectors Type |
IEC-320 C19 |
| Battery Location |
plug-in-module |
| Battery Installed Quantity |
3 |
| Maximum Peak Current Capacity |
7200 mAh |
| Network/Transport Protocol |
SNMP |
| Management Port Quantity |
1 |
| Management Port Connector Type |
RS-232 9-pin D-Sub |
| Maximum Operating Ambient Temperature |
40 °C |
| Maximum Operating Humidity |
80 % |
| Minimum Operating Ambient Temperature |
0 °C |
| Minimum Operating Humidity |
20 % |
| Typical Operating Noise Level |
50 dB |
| Mounting Capability |
Rackmount/Stand Alone |
| Rack Size |
19 " |
| Standard Rack Height |
2 U |
| Package Type |
Box |
| Depth (mm) |
412 mm |
| Height (mm) |
88 mm |
| Width (mm) |
440 mm |
| Nominal Weight |
16 kg |
