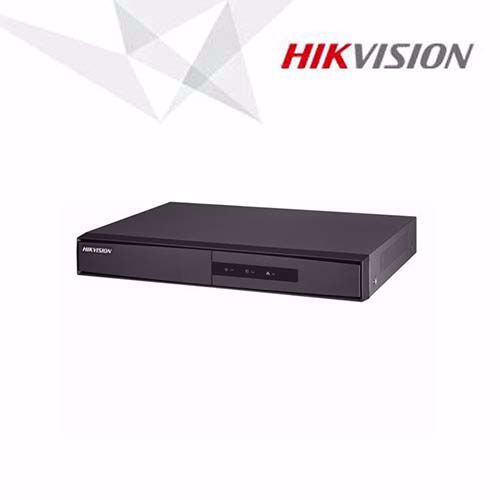

Podržava 720p TVI/AHD kamere, snimanje svih kanala do rezolucije 1280×720 (720p) u 12fps, kada je uključen 1080p Lite mod - 1080p lite @ 25/30 fps. Mogućnost snimanja dvr dodatne IP kamere rezolucije 960p, maksimalna brzina snimanja po kanalu 4 megabita, HDMI/VGA izlaz, izlazna rezolucija do 1920×1080 piksela, 1 audio ulaz, 1 audio izlaz, dvosmerna audio komunikacija, 2 USB porta za bekap i kontrolu mišem, mogućnost priključenja jednog SATA hard diska, maksimalni kapacitet 6TB, 12VDC.
Specifikacije:
Recording
- Video Compression: H.264+/H.264
- Encoding Resolution: When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF, When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
- Frame RateMain stream: ,When 1080p Lite mode not enabled:,For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled:,1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N),
- Video Bit Rate: 32 Kbps to 4 Mbps
- Dual Stream: Support
- Stream Type: Video, Video & Audio
- Audio Compression: G.711u
- Audio Bit Rate: 64 Kbps
Video And Audio
- IP Video Input: 2-ch (up to 10-ch) Up to 1080p resolution Support H.264+/H.264 IP cameras
- Analog Video Input: 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- Turbo HD Input: 1080p25, 1080p30, 720p25, 720p30
- AHD Input: 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
- CVBS Input: Support
- Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: Reuse the first audio input
- Synchronous Playback: 8-ch
- VGA/HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network
- Remote Connections: 128
- Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
- SATA1 SATA interface
- Capacity: Up to 6 TB capacity for each disk
- Alarm In/Out: N/A
- USB Interface: Rear panel: 2 × USB 2.0
General
- Power Supply: 12 VDC
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Weights (Without HDD): ≤ 1 kg (2.2 lb)
- Consumption(Without HDD): ≤ 12 W
- Dimensions(W × D × H): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
