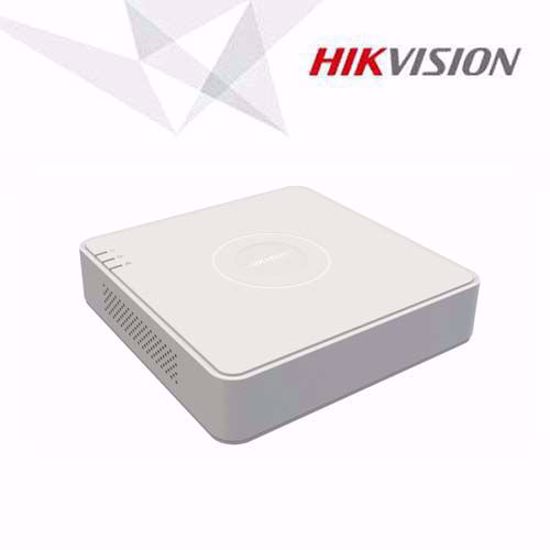

Hikvision DS-7104HQHI-K1(C)(S) TurboHD snimac 4ch 4MP Lite

Hikvision DS-7104HQHI-K1(C)(S) snimac
4-kanalni ekonomični HD-TVI/AHD digitalni snimač u plastičnom kućištu
SKU: HK388
Proizvođač: HIKVISION
Ostavi komentar o proizvodu.

Hikvision DS-7104HQHI-K1(C)(S) snimac

4-kanalni ekonomični HD-TVI/AHD digitalni snimač u plastičnom kućištu;

Podržava 4 HD-TVI (3 MP za prvi kanal/ 1080p ili 720p ostali kanali) ili AHD (1080p/720p) ili analogne kamere (slobodan izbor) + 1 Hikvision IP kamera (4MP/25 fps); Kompresija H.265+/ H.265/ H.264+/ H.264; Brzina zapisa (po kanalu): 12.5 fps@3MP/ 12.5 fps@1080p/ 25 fps@720p; Dual stream; Prostor za 1 SATA HDD (do 4ТВ); 1 audio ulaz/1 izlaz; 2 USB porta; 100Mbit LAN; HDMI/VGA video izlazi; Grafički meni; CMS software; Klijent za mobilne telefone iVMS-4500/ Hik-Connect (iOS/Android/ WinMobile); USB miš, bez HDD.



Specifikacije:



Recording

  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution:

    When 1080p Lite mode is not enabled:

    4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;

    When 1080p Lite mode is enabled:

    4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF



Frame Rate

Main stream:

When 1080p Lite mode is not enabled:

For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode is enabled:

4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)



  • Video Bitrate: 32 Kbps to 6 Mbps
  • Dual-Stream: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps



Video And Audio

  • IP Video Input: 1-ch (up to 5-ch)



    Enhanced IP mode on:

    2-ch (up to 6-ch), each up to 4 Mbps

    Up to 6 MP resolution

    Support H.265+/H.265/H.264+/H.264 IP cameras



  • Incoming Bandwidth: 24 Mbps
  • Analog Video Input: 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input: 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60

    *: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1.

  • AHD Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
  • CVBS Input: Support
  • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio Input:

    1-ch, RCA (2.0 Vp-p, 1 KΩ)

    4-ch via coaxial cable

  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous Playback: 4-ch



Network

  • Total Bandwidth: 72 Mbps
  • Remote Connection: 32
  • Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interface



Auxiliary Interface

  • SATA1: SATA interface
  • Capacity: Up to 6 TB capacity for each disk
  • Alarm In/Out: N/A
  • USB Interface: Rear panel: 2 × USB 2.0

General

  • Power Supply: 12 VDC, 1.5 A
  • Consumption: ≤ 8 W
  • Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity: 10% to 90%
  • Dimension: (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
  • Weight: ≤ 1 kg (2.2 lb)
