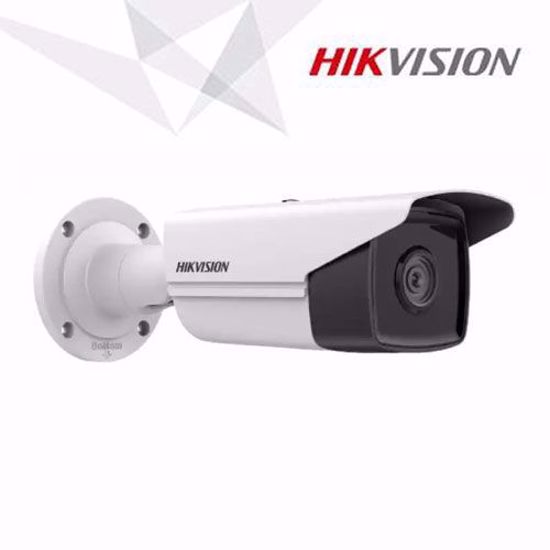

Hikvision DS-2CD1T43G0-I bullet kamera 4mm 4MP

Hikvision DS-2CD1T43G0-I bullet kamera
SKU: HV565
Proizvođač: HIKVISION
Ostavi komentar o proizvodu.

Model: Hikvision DS-2CD1T43G0-I bullet kamera

Visokokvalitetna slika sa rezolucijom od 4 MP; Jasna slika uz jako pozadinsko osvetljenje zahvaljujući 120 dB WDR tehnologiji; Efikasna tehnologija kompresije H.265+; Otporan na vodu i prašinu (IP67); Jednostavna instalacija sa Power over Ethernet (PoE) tehnologijom; 3D DNR tehnologija daje čiste i oštre slike;



Specifikacije:

  • Image Sensor: 1/3″ Progressive Scan CMOS
  • Min. Illumination: Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Slow Shutter: Yes
  • Wide Dynamic Range: 120dB
  • Day & Night ICR Cut
  • Linkage Method: Upload to FTP, notify surveillance center, send email, trigger capture
  • Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
  • Lens Type & FOV: 4 mm, horizontal FOV 75°, vertical FOV 41°, diagonal FOV 88°; 6 mm, horizontal FOV 49°, vertical FOV 26°, diagonal FOV 57°
  • Aperture: 4 mm F2.0; 6mm F1.6
  • Lens Mount M12
  • IR Range 50m
  • Wavelength 850nm
  • Smart Supplement Light Yes
  • Max. Resolution 2560 × 1440
  • Main Stream

    50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720); 60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)



  • Sub Stream

    50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

  • Video Compression: Main Stream: H.265/H.264/H.264+/H.265+; sub-stream: H.265/H.264 /MJPEG
  • Video Bit Rate 32 Kbps to 8 Mbps
  • H.264 Type Baseline Profile/Main Profile/High Profile
  • H.265 Type Main Profile
  • Stream Type Main stream/Sub-stream
  • Region Of Interest (ROI) 1 fixed region for main stream and sub-stream
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Smooth Streaming Yes
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • Security Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
  • Clienti VMS-4200, Hik-Connect, Hik-Central
  • Web Browser IE8+, Chrome41.0-44, Firefox 30.0-51, Safari8.0-11
  • Image
  • Smart IR: Yes
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image Enhancement: BLC, HLC, 3D DNR
  • Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • SNR≥ 52 dB
  • Interface
  • Communication Interface: 1x RJ45 10M/100M self-adaptive Ethernet port
  • Intelligent (Traditional Algorithm)
  • Basic Event: Motion detection, video tampering alarm
  • General
  • Firmware VersionV5.5.84
  • Web Client LanguageEnglish, Russian, Italian, French, Polish, Spanish, Turkish, Portuguese
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy masks, watermark, IP address filter
  • Software ResetYes
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection
  • Power Consumption And Current12 VDC, 0.50 A, max. 6W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 7 W
  • Power InterfaceΦ5.5 mm coaxial power plug
  • MaterialFront cover & bracket: metal; back cover & sun shield: plastic
  • Camera Dimension71.67 × 92.87 × 221.49 mm (2.82" × 3.65" × 8.72")
  • Package Dimension234 × 120 × 117 mm (9.21″ × 4.72″ × 4.61″)
  • Camera Weight500 g (1.10 lb.)
  • With Package Weight670 g (1.48 lb.)
  • Approval
  • ProtectionIngress protection: IP67 (IEC 60529-2013)
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); IC (ICES-003: Issue 6, 2016)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
