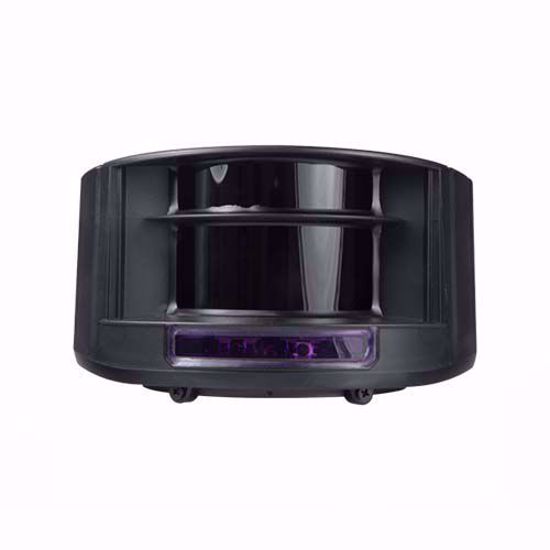

Model: GJD505 spoljni laserski detektor pokreta 5x5m
GJD eksterni laserski detektor; Laserska tehnologija sa pokrivenošću tipa Curtain; Opseg detekcije podesiv do 5m; Visoka pouzdanost i preciznost detekcije; Napajanje 10~35 VDC; Upotreba na otvorenom;
Specifikacije:
| Technology |
Laser Technology |
| Detection range |
Up to 5 x 5 m / 90º laser curtains for alarm and pre-alarm |
| Minimum target size |
Depending on the distance to the detector: 2.1 cm to 3 m / 3.5 cm to 5 m |
| Response time in detection |
20 ms |
| Emission characteristics |
Wavelength: 905 nm (IR laser) / 650 nm (visible red laser during installation) |
| Tamper-resistant opening |
Available |
| LEDs indication |
ON/OFF, Alarm and Fault |
| Configuration |
Configuration by remote control command GJD501 |
| Wired outputs |
Alarm and Tamper |
| Installation |
3 visible laser beams to adjust the detection area and self-learning function |
| Power |
10 at 35 VDC |
| Average consumption |
< 5 W |
| Temp. operation |
-30 ºC ~ 60 ºC |
| Degree of protection |
IP65 |
| Covered material |
High quality PC/ASA plastic |
| Dimensions |
70 (H) x 93 (W) x 125 (D) mm |
