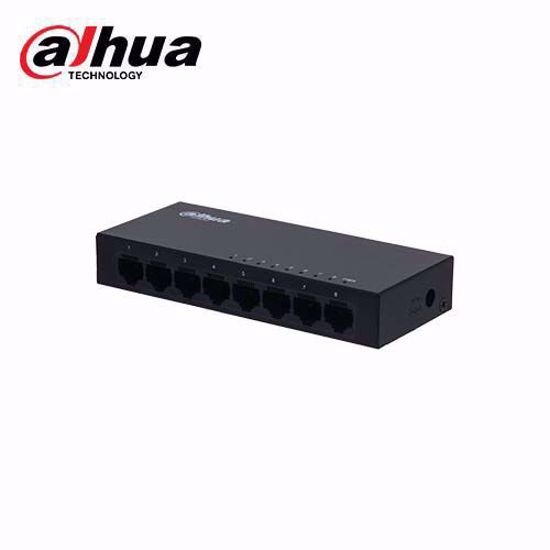

DAHUA PFS3008-8GT-V2 ethernet switch
8-Portni neupravljivi Gigabitni Switch
> Podržava osam 10/100/1000 Mbps adaptivnih portova
> Mali i lagan
Specifikacije:
|
Hardware
|
|
Included Power Adapter
|
Yes
|
|
Ethernet Port
|
8
|
|
Ethernet Port Speed
|
10/100/1000 Mbps
|
|
Description of Function Slots
|
Port 1–8: 8 × 10/100/1000 Base-T
|
|
Power Supply
|
5 VDC; 1 A
|
|
Operating Temperature
|
0 °C to +45 °C (+32 °F to +113 °F)
|
|
Operating Humidity
|
5%–95% (RH)
|
|
Storage Temperature
|
–40 °C to +70 °C (–40 °F to +158 °F)
|
|
Storage Humidity
|
5%–95% (RH)
|
|
Power Consumption
|
Idling: 0.5 W
Full load: 3.0 W
|
|
Performance
|
|
MTBF
|
576.29 years
|
|
Switching Capacity
|
16 Gbit
|
|
Packet Forwarding Rate
|
11.904 Mpps
|
|
Packet Buffer Size
|
768 kbit
|
|
MAC Table Size
|
2K
|
|
General
|
|
Statics Protection
|
Air discharge: 8 kV
Contact discharge: 4 kV
|
|
Lighting Protection
|
Common mode: 2 kV
|
|
Net Weight
|
0.23 kg (0.51 lb)
|
|
Gross Weight
|
0.35 kg (0.77 lb)
|
|
Product Dimensions
|
133.5 mm × 56.0 mm × 22.0 mm
(5.26" × 2.20" × 0.87")
|
|
Packaging Dimensions
|
136.0 mm × 55.0 mm × 153.0 mm
(5.35" × 2.17" × 6.02")
|
|
Casing Material
|
metal
|
|
Installation
|
Desktop mount
|
|
Certifications
|
CE; FCC
|
