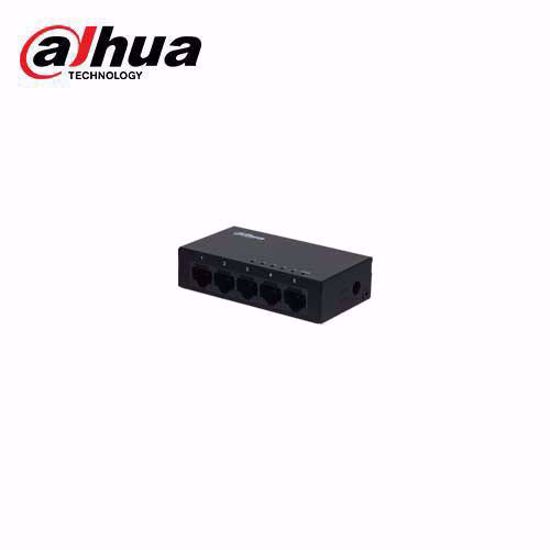

DAHUA PFS3005-5GT-V2 ethernet switch
5-portni gigabitni switch. 5x 10/100/1000 Base-T. Switching Capacity 10Gbps. Packet Forwarding Rate 7.44Mpps. Eksterno napajanje 220VAc/5VDc 1A. Plastično kućište. Dimenzije 87mm × 47mm × 22 mm.
Specifikacije:
Hardware
|
Included Power Adapter
|
Yes
|
Ethernet Port
|
5
|
Ethernet Port Speed
|
10/100/1000 Mbps
|
Description of Function Slots
|
Port 1–5: 5 × 10/100/1000 Base-T
|
Power Supply
|
5 VDC; 1 A
|
Operating Temperature
|
0 °C to +45 °C (+32 °F to +113 °F)
|
Operating Humidity
|
5%–95% (RH)
|
Storage Temperature
|
–40 °C to +70 °C (–40 °F to +158 °F)
|
Storage Humidity
|
5%–95% (RH)
|
Power Consumption
|
Idling: 0.5 W Full load: 1.5 W
|
Performance
|
MTBF
|
363.24 years
|
Switching Capacity
|
10 Gbit
|
Packet Forwarding Rate
|
7.44 Mpps
|
Packet Buffer Size
|
1.5 Mbit
|
MAC Table Size
|
2K
|
General
|
Statics Protection
|
Air discharge: 8 kV Contact discharge: 4 kV
|
Lighting Protection
|
Common mode: 2 kV
|
Net Weight
|
0.16 kg (0.35 lb)
|
Gross Weight
|
0.28 kg (0.62 lb)
|
Product Dimensions
|
87.0 mm × 47.0 mm × 22.0 mm (3.42" × 1.85" × 0.87")
|
Packaging Dimensions
|
94.0 mm × 111.0 mm × 67.0 mm (3.70" × 4.37" × 2.64")
|
Casing Material
|
Metal
|
Installation
|
Desktop mount
|
Certifications
|
CE; FCC
|
