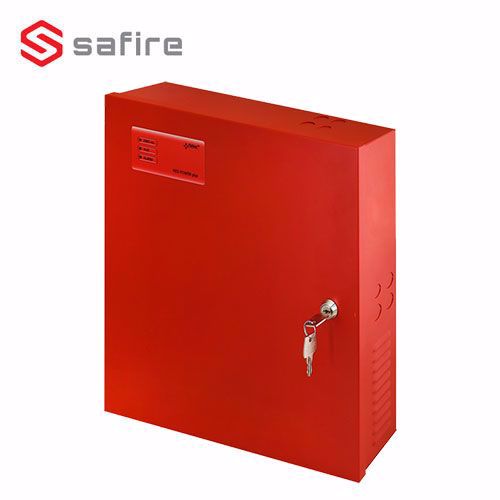

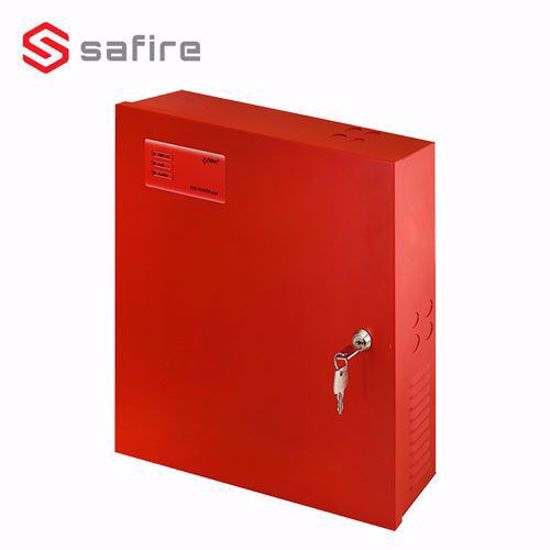

Model: Advanced PD-5A17-FIRE dodatno napajanje
Sertifikat EN54-4; Izlazna struja 4.2A; Do 5A za 5 minuta; Pomoćni izlazi kvara; Kapacitet za 2 baterije od 12V 17Ah;
Specifikacije:
| Power supply input |
230VAC |
| Output Voltage |
22~27.6VDC |
| Efficiency |
87% |
| Output current |
Nominal: 42A
Maximum: 5A (5 minutes)
Middle charging current: 0.8A |
| Back-up battery |
Supports up to 2x12VDC / 17Ah |
| Permitted cable |
Up to 2.5mm2 |
| Protections |
SCP, OLP, OVP, UVP, tamper - opening of the box |
| Materials |
Plate DC01, 1mm, RAL3001 (red), made of metal |
| Closing |
Lock (1xMR027, of the same code) |
| Degree of protection of the enclosure |
IP30 |
| Dimensions |
385 x 402 x 88 [+/-2 mm]] |
