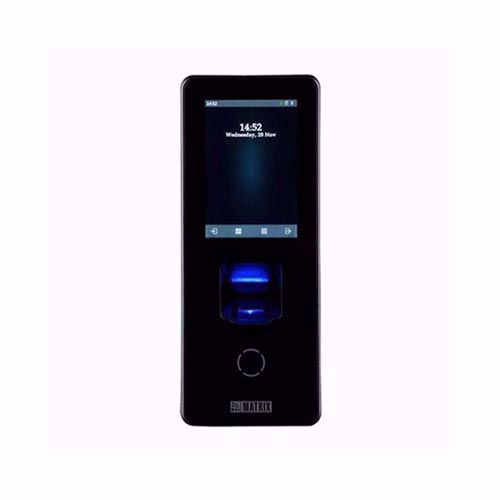

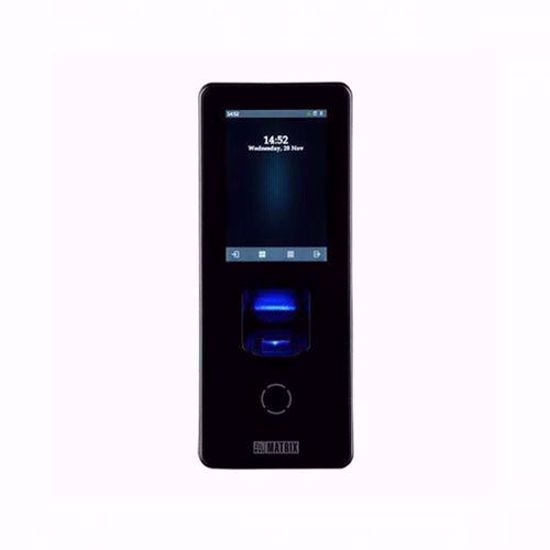

Matrix COSEC ARGO FOI212 terminal za ERV i KP
- Optički čitač otiska prsta i HID iCLASS kartica
- 3.5″ IPS Touch Ekran sa GorillaGlass Touch Ekranom, PoE, Wi-Fi, IK08 i IP65 zaštitama
- Ugrađen interfejs za USB, Door Lock, Door Sense, Exit Reader, Exit Switch i Ethernet
- Kontrola pristupa, Evidencija radnog vremena i aplikacija za kafeteriju
- 500,000 Događaja i 27,000 šablona za otisak prsta
Mogućnost ugradnje i površinskog montiranja.
Revolutionizing Access Control and Time-Attendance with COSEC ARGO Series | Matrix Comsec (youtube.com)
Tehničke specifikacije:
| GENERAL |
|---|
| Credential Support |
Bluetooth (BLE), Fingerprint, RFID Card, PIN, Face (with Compatible Hardware) |
| IP Rating |
IP65 (With wall mounting installation condition and flush mounting with recommended installation surface) |
| RF Option |
Smart Cards - MIFARE Classic® and NFC Tag and HID iCLASS
Proximity Cards - EM Prox and HID Prox
(Separate variant for each card type. HID PROX requires HID iCLASS type) |
| |
|
| CAPACITY |
|---|
| Maximum Users |
50,000 |
| Maximum Templates |
25,000 in 1: N Mode and 100,000 in 1:1 Mode (Optical sensing technology) |
| Event Buffer |
500,000 |
| Templates per User |
Up to 10 (Single template per finger mode)
Up to 5 (Dual template per finger mode) |
| Cards per User |
Up to 2 |
| |
|
| COMMUNICATION |
|---|
| Wi-Fi |
Yes (802.11 b/g/n) |
| Bluetooth |
Built-in Bluetooth (8m Range - For Mobile Applications) |
| Ethernet |
Yes (10/100 Mbps) |
| PoE |
Yes (IEEE 802.3 af) |
| RS-232 |
Yes |
| Mobile Broadband |
Yes |
| Wiegand |
Wiegand IN/OUT Available |
| USB |
1 Micro-USB Port (Data transfer and 2G-3G dongle) |
| |
|
| INTERFACE |
|---|
| Exit Switch Port |
Yes |
| Door Status Sense |
Programmable NO, NC, Supervised |
| Door Lock Relay |
30V DC @ 2 A, Form C, SPDT Relay |
| Door Lock Power |
Internal 12V DC @ Max. 0.5A or External
(*External power supply is recommended for >500ma locks supply) |
| Aux-In |
No |
| Aux-Out |
No |
| Reader Interface Types |
RS-232 and Wiegand IN/OUT |
| Micro SD Card |
Yes (Inbuilt 8GB) |
| |
|
| HARDWARE |
|---|
| CPU |
800 MHz ARM Cortex A8 based Processor |
| Memory |
512 MB Flash + 512 MB DDR3 RAM |
| Display |
3.5" IPS Display with Capacitive Touch Panel with Gorilla Glass |
| Display Resolution |
320 x 480 Pixel |
| Buzzer |
Yes |
| Operating Temperature |
0°C to +50°C |
| Humidity |
5% to 85% RH Non-Condensing |
| Tamper Detection |
Yes |
| Power |
12V DC @ 2A |
| Power to Door Lock |
12V DC @ 0.5A (Power to external Lock from Device) |
| Dimensions (W x H x D) |
74mm x 186mm x 50mm |
| Weight |
0.549Kgs (1.21Lbs) |
| |
|
| COMPATIBILITY |
|---|
| System Integration |
API for Software Integration |
| Operational Modes |
Direct Door with COSEC CENTRA Server
Panel Door with COSEC PANEL LITE V2 |
