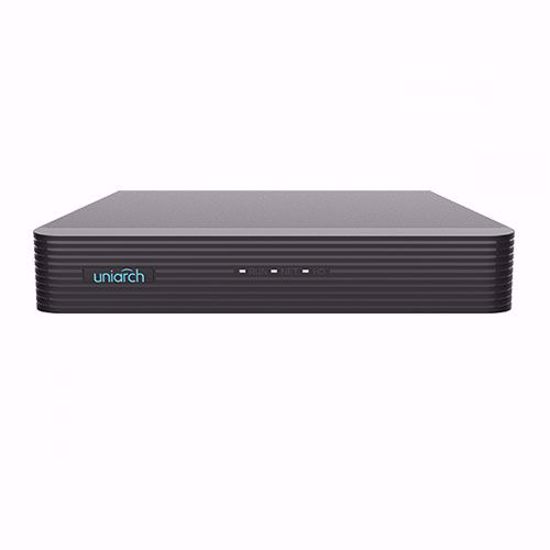

Model: Uniarch UV-XVR108G2 snimač
Video rekorder 5u1 Uniarch; 8CH HDTVI / HDCVI / AHD / CVBS + 4 dodatna IP; Audio; Podržava 1 hard disk;
Specifikacije:
| Video format |
HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs |
8CH BNC |
| Hybrid configuration |
Up to 8 IP Channels (4Mpx) replacing all the BNC channels |
| Video outputs |
1 HDMI Full HD, 1 VGA |
| Audio inputs |
1 Channel RCA |
| Audio outputs |
1 Channel RCA |
| Bidirectional audio |
Reusing the audio input/output |
| Display resolution |
1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Maximum IP recording resolution |
4 Mpx |
| Analog recording resolution |
AHD/TVI 5Mpx@12fps - CVI 4 Mpx@15fps |
| Recording method |
Manual, programmed, motion detection |
| Internal memory |
1 HDD SATA 3.5" of up to 6TB (not included) |
| External interface |
2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485 |
| Remote access |
Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power |
DC 12V / 8W |
| Dimensions / Weight |
46 (H) x 260 (W) x 243 (Fo) mm / 1 kg |
