Verzija terminala sa ugrađenim čitačem Mifare i Desfire kartica.

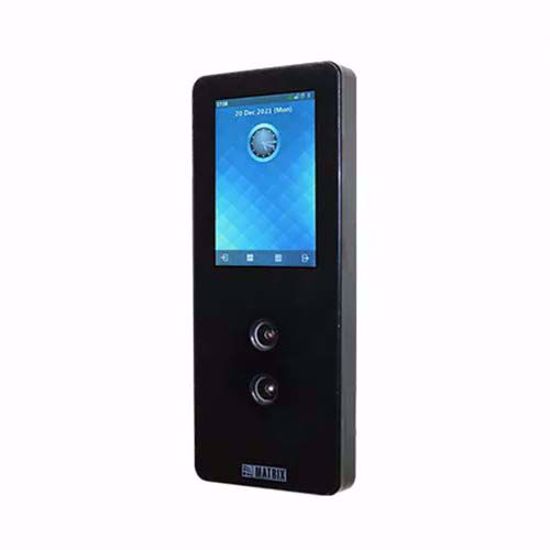

Posle osnovnih operacija, sigurnost organizacije igra ključnu ulogu u svakom poslu. Matrix predstavlja COSEC ARGO FACE, inteligentni kontroler vrata novog doba sa prepoznavanjem lica kao akreditivom.
Višestruke i napredne opcije akreditiva kao što su lice, Bluetooth®, PIN i pametne kartice. Ovaj uređaj dolazi sa ogromnim šablonom i kapacitetom za skladištenje događaja.
Sa ciljem da ponudi poboljšanu viziju u kombinaciji sa bezbednošću, poseduje IPS LCD ekran osetljiv na dodir i Gorilla staklo. To je kao univerzalni uređaj za više aplikacija koji uklanja potrebu za namenskim hardverom za različita rešenja!
Revolutionizing Access Control and Time-Attendance with COSEC ARGO Series | Matrix Comsec (youtube.com)
Tehničke Specifikacije:
| CREDENTIAL |
|---|
| Human Face |
Yes |
| PIN |
Yes
|
| Card |
Mifare,DESfire, NFC tag
|
| BLE - Mobile |
Yes |
| CAPACITY |
|---|
| User Profiles |
50,000 |
| Face Templates |
200,000 |
| Max. Templates Per User |
30 |
| Event Logs |
500,000 |
| FACE RECOGNITION |
|---|
| Algorithm |
Deep Learning-based Face Recognition |
| Fake Face Detection |
Yes |
| Face Identification |
1:200,000 in < 1 sec
1:1 in < 0.5 sec |
| Face Enrolment |
Enrolment Station
Upload Images |
| Recognition Distance |
30cm - 120cm (0.3m - 1.2m) |
| Recognition Height |
140cm - 198cm (1.4m - 1.98m) |
| GENERAL SPECIFICATIONS |
|---|
| Dimensions (HxWxD) |
186mm x 74 mm x 50mm
(7.3” x 3” x 2 “) |
| Weight |
650gms (1.433 lbs) |
| Display |
3.5" IPS LCD (Touch Screen) |
| Display Resolution |
480 x 320 Pixel |
| Gorilla Glass |
Yes (Gorilla Glass 3) |
| CPU |
Quad-Core ARM Cortex-A7 @ 1.5 GHz |
| GPU |
Built-in 2 TOPS Neural Network Computing Performance |
| RAM |
2 GB DDR4 |
| Flash Memory |
16 GB eMMC |
| SD Card |
No |
| Tamper Detection |
Yes |
| Buzzer |
Yes |
| IR LEDs |
Yes |
| Ingress Protection |
IP65 |
| Vandal Proof |
IK06 |
| Certificate |
CE, FCC, BIS, UL, RoHS |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-20°C to 60°C |
| Humidity |
5% to 95 % RH Non-Condensing |
| CAMERA |
|---|
| RGB Camera |
2MP Surveillance Grade, IR Blocked |
| Infrared Camera |
2MP Surveillance Grade, IR Band Pass |
| Camera Sensors |
SONY IMX 307, EXMOR Technology, STARVIS Series |
| COMMUNICATION |
|---|
| Ethernet |
Yes (10/100 Mbps - 1 port) |
| PoE |
Yes (IEEE 802.3 af) |
| WiFi |
Yes (802.11 b/g/n) |
| 3G/4G/LTE |
Yes (Additional USB Modem) |
| BLE |
Yes (8m Range) |
| USB |
Yes (USB 2.0)
Micro USB-Type B |
| INTERFACE |
|---|
| Exit Switch Interface |
Yes |
| External Reader Support |
Yes (MATRIX and 3rd Party) |
| External Reader |
Interface
- RS232
- Wiegand
- Power
- 12VDC @ 0.5A
LED and Buzzer Control
Allowed - GREEN LED |
| Wiegand |
Yes (Selectable IN/OUT)
IN: 26 Bit format OUT:
Configurable |
| Door Lock Relay |
Yes (30VDC @ 2A, Dry Contacts NO/NC/COM) |
| Door Lock Power |
Internal PoE Power: 12VDC @ 0.250 A
Internal Adapter Power 12VDC @ 0.5 A
External Power 12VDC @ 2A |
| INSTALLATION |
|---|
| Wall Mount |
Yes - Plastic Back Cover with Screws |
| Flush Mount |
Yes - Metal Bracket with Screws |
| Power Adapter |
12VDC @ 2A (CE, FCC, UL, BIS) |
