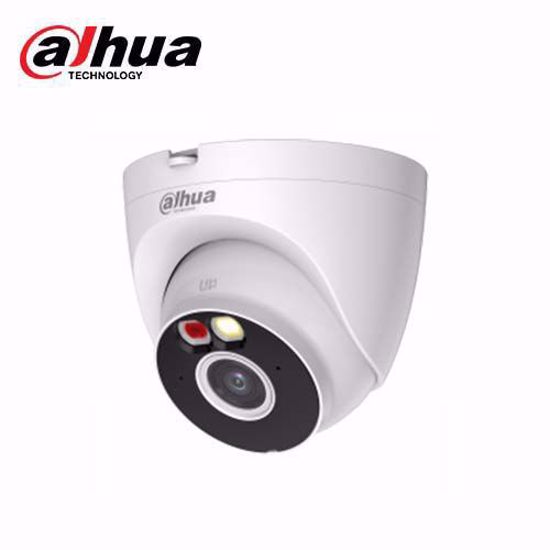

DAHUA IPC-HDW1239DT-PV-STW-0280B dome kamera 2MP
2MP Smart Dual Light Active Deterrence Wi-Fi mrežna kamera sa fiksnom fokusom
> 2-MP 1/3" CMOS senzor slike, niske osvetljenosti i slike visoke definicije.
> Izlazi mak. 2 MP (1920 × 1080) @ 25/30 fps.
> H.265 kodek, visoka stopa kompresije, ultra-niska brzina prenosa.
> Ugrađeno toplo svetlo i IR LED, a maks. udaljenost osvetljenja je 30 m.
> SMART H.264+/H.265+, fleksibilno kodiranje, primenljivo na različite propusne opsege i okruženja za skladištenje.
> DWDR, 3D NR, HLC, BLC, digitalni vodeni žig, primenljiv na različite scene praćenja.
> Detekcija abnormalnosti: detekcija pokreta, video neovlašćena detekcija, audio detekcija, nema SD kartice, puna SD kartica, greška na SD kartici, isključivanje mreže, konflikt IP-a i ilegalan pristup.
> Podržava maks. 256 G Micro SD kartica; ugrađeni mikrofon i zvučnik.
> 12 VDC napajanje.
> IP67 zaštita.
> Podrška otkrivanju ljudi.
Specifikacije:
|
Camera
|
|
Image Sensor
|
1/3" CMOS
|
|
Max. Resolution
|
1920 (H) × 1080 (V)
|
|
ROM
|
16 MB
|
|
RAM
|
64 MB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100,000 s
|
|
Min. Illumination
|
0.005 lux@F1.6 (Color, 30 IRE)
0.0005 lux@F1.6(B/W, 30 IRE)
0 lux (Illuminator on)
|
|
S/N Ratio
|
>56 dB
|
|
Illumination Distance
|
Up to 30 m (98.53 ft)
|
|
Illuminator On/Off Control
|
Auto
|
|
Illuminator Number
|
1 (IR LED); 1 (Warm light)
|
|
Angle Adjustment
|
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
|
|
Lens
|
|
Lens Type
|
Fixed-focal
|
|
Lens Mount
|
M12
|
|
Focal Length
|
2.8 mm; 3.6 mm
|
|
Max. Aperture
|
F1.6
|
|
Field of View
|
2.8 mm: H: 98°; V: 55°; D: 115°
3.6 mm: H: 78°; V: 41°; D: 94°
|
|
Iris Control
|
Fixed
|
|
Close Focus Distance
|
2.8 mm: 1 m (3.28 ft)
3.6 mm: 1.7 m (5.58 ft)
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
2.8 mm
|
61.2 m
(200.78 ft)
|
24.5 m
(80.38 ft)
|
12.2 m
(40.03 ft)
|
6.1 m
(20.01 ft)
|
|
3.6 mm
|
85.4 m
(280.18 ft)
|
34.2 m
(112.20 ft)
|
17.1 m
(56.10 ft)
|
8.5 m
(27.89 ft)
|
|
Intelligence
|
|
Human Detection
|
Support the classification and accurate detection of human
|
|
Video
|
|
Video Compression
|
H.264B; H.264; H.264H; H.265
|
|
Smart Codec
|
Smart H.265+; Smart H.264+
|
|
Video Frame Rate
|
Main stream: 1920 × 1080@(1–25/30 fps)
Sub stream: 640 × 480@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
|
|
Stream Capability
|
2 streams
|
|
Resolution
|
1080p (1920 ×1080); 1280 × 960 (1280 × 960); 1280 × 720 (1280 × 720)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 24 kbps–4096 kbps
H.265: 9 kbps–4096 kbps
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
DWDR
|
|
White Balance
|
Auto; natural; street lamp; outdoor; manual; regional custom
|
|
Gain Control
|
Auto
|
|
Noise Reduction
|
3D NR
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
Region of Interest (RoI)
|
Yes (4 areas)
|
|
Smart Illumination
|
Yes
|
|
Image Rotation
|
0°/180°
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
4 areas
|
|
Audio
|
|
Built-in MIC
|
Yes, built-in Mic
|
|
Built-in Speaker
|
Yes, built-in speaker
|
|
Audio Compression
|
G.711a; G.711Mu; PCM; G.726
|
|
Alarm
|
|
Alarm Event
|
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; abnormal audio input; intensity change; motion detection
|
|
Network
|
|
Network Port
|
RJ-45 (10/100 Base-T)
|
|
Wi-Fi
|
IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G
|
|
SDK and API
|
Yes
|
|
Network Protocol
|
IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP; P2P
|
|
Interoperability
|
ONVIF (Profile S; Profile G); CGI
|
|
User/Host
|
20 (Total bandwidth: 64 M)
|
|
Storage
|
Micro SD card (support max. 256 GB)
|
|
Browser
|
IE; Chrome; Firefox
|
|
Management Software
|
Smart PSS; DSS; DMSS
|
|
Mobile Client
|
iOS;Android
|
|
Cyber Security
|
Configuration encryption;trusted execution;Digest;security logs;HTTPS;trusted upgrade;WSSE;trusted boot;account lockout;generation and importing of X.509 certification;video encryption
|
|
Certification
|
|
Certifications
|
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU
|
|
Power
|
|
Power Supply
|
12 VDC
|
|
Power Consumption
|
Basic: 2 W (12 VDC)
Max. (H.265+warm light intensity): 6.9 W (12 VDC)
|
|
Environment
|
|
Operating Temperature
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
|
Operating Humidity
|
≤95%
|
|
Storage Temperature
|
–30 °C to +60 °C (–22 °F to +140 °F)
|
|
Storage Humidity
|
≤95%
|
|
Protection
|
IP67
|
|
Structure
|
|
Casing Material
|
Inner core: Metal + Plastic
Cover: Plastic
|
|
Product Dimensions
|
Φ109.9 mm × 102.2 mm (Φ4.33" × 4.02")
|
|
Net Weight
|
353 g (0.78 lb)
|
|
Gross Weight
|
602 g (1.33 lb)
|
