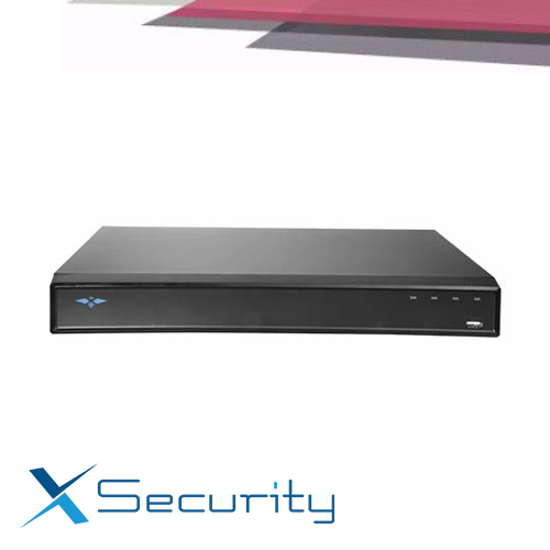

Model: XS-XVR6216S-4KL snimač
DVR 5u1 X-Security 16 CH
HDTVI / HDCVI / AHD / CVBS / 16+8 IP; 4KL (7FPS) / 5M (12FPS) / 4M/3M (15FPS) 1080P/720P (25FPS) | 1 CH audio; Izlazi 4K HDMI & VGA; Prostor za 2 hard diska;
Specifikacije:
| Brand |
X-Security |
| Video format |
HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs |
16 BNC Channels:
HDTVI: Up to 5Mpx
HDCVI: Up to 4K
AHD: Up to 5Mpx
CVBS |
| Hybrid configuration |
Up to 24 IP Channels (8Mpx), replacing all the BNC channels |
| Video outputs |
1 HDMI Full HD, 1 VGA |
| Audio inputs |
1 Channel RCA |
| Audio outputs |
1 Channel RCA |
| Bidirectional audio |
Reusing the audio input/output |
| Supports audio |
Over coax |
| Video / audio compression |
H.264+/H.264 / G.711u |
| Display resolution |
3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Total bandwidth |
96 Mbps |
| Recording resolution |
4K / 6Mp / 5Mp / 4Mp / 3Mp / 1080p / 1080N / 720p |
| Main Stream coding |
HDCVI: 4K (7FPS) / 5MP (12FPS) / 4MP / 3MP (15FPS) / 1080p / 720p (25 FPS)
HDTVI / AHD: 5MP (12FPS) / 4MP / 3MP (15FPS) / 1080p / 720p (25 FPS)
CVBS: 960H / D1 / HD1 / BCIF / CIF / QCIF (25 FPS) |
| Extra Stream coding |
D1 / CIF / QCIF (1~25 FPS) |
| Simultaneous multifunction |
Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms |
No |
| Video analysis |
VCA: Tripwire | Area intrusion | Abandoned object | Face detection |
| Recording method |
Manual, programmed, motion detection, alarm |
| Backup |
USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal memory |
2 HDD SATA 3.5" of up to 6TB (not included) |
| Communication |
RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote access |
Web browser (ActiveX), mobile phone application or PSS software |
| Power |
DC 12 V / 5 A |
| Dimensions / Weight |
53 (H) x 375 (W) x 287 (D) mm / 2.35 Kg |
