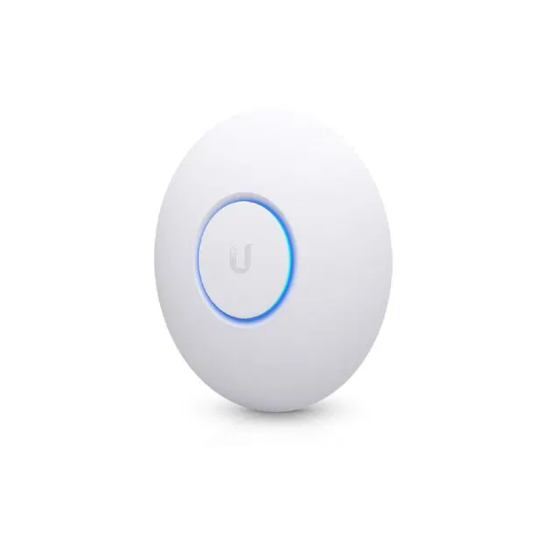

Ubiquiti UAP-nanoHD-EU 4x4 MU-MIMO
Fabričke specifikacije:
| Mechanical |
|---|
| Dimensions |
Ø160 x 32.7 mm (Ø6.3 x 1.3") |
| Weight |
Without mount: 300 g (10.6 oz)
With mount: 315 g (11.1 oz) |
| Hardware |
|---|
| Networking interface |
(1) GbE RJ45 port |
| Power method |
PoE |
| Power supply |
UniFi PoE Switch |
| Max. power consumption |
10.5W |
| Supported voltage range |
44—57V DC |
Max. TX power
2.4 GHz
5 GHz |
23 dBm
26 dBm |
MIMO
2.4 GHz
5 GHz |
2 x 2
4 x 4 |
Throughput rate
2.4 GHz
5 GHz |
300 Mbps
1733 Mbps |
Antenna gain
2.4 GHz
5 GHz |
2.8 dBi
3 dBi |
| Button |
(1) Factory reset |
| Mounting |
Wall/ceiling (Included) |
| Operating temperature |
-10 to 70° C (14 to 158° F) |
| Operating humidity |
5 to 95% noncondensing |
| Certifications |
CE, FCC, IC, cULus |
| Software |
|---|
| WiFi standards |
802.11 a/b/g/n/ac/ac-wave2 |
| Wireless security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID |
Up to 8 per Radio |
| WMM |
Voice, video, best effort, and background |
| Concurrent clients |
200+ |
| Supported Data Rates (Mbps) |
|---|
| 802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b |
1, 2, 5.5, 11 Mbps |
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) |
