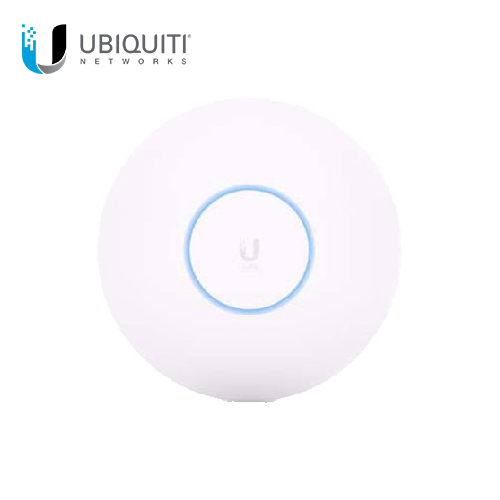

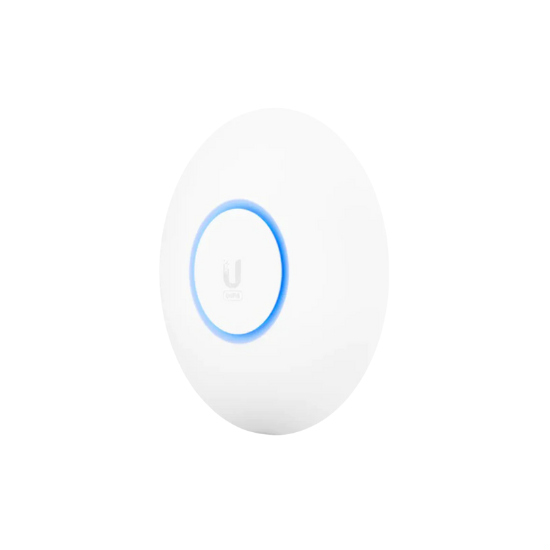

Ubiquiti U6-PRO access point indoor - bežična pristupna tačka
Fabričke specifikacije:
| Mechanical |
|---|
| Dimensions |
Ø197 x 35 mm (Ø7.76 x 1.38") |
| Weight |
Without mount: 460 g (1.01 lb)
With mount: 600 g (1.32 lb) |
| Enclosure material |
Polycarbonate |
| Mount material |
Stainless steel (SUS304) |
| Weatherproofing |
IP54 |
| Hardware |
|---|
| Networking interface |
(1) GbE RJ45 port |
| Management interface |
Ethernet
Bluetooth |
| Power method |
PoE |
| Power supply |
UniFi PoE switch
48V, 0.5A PoE adapter (not included) |
| Supported voltage range |
44—57V DC |
| Max. power consumption |
13W |
Max. TX power
2.4 GHz
5 GHz |
22 dBm
26 dBm |
MIMO
2.4 GHz
5 GHz |
2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO) |
Throughput rate
2.4 GHz
5 GHz |
573.5 Mbps
4.8 Gbps |
Antenna gain
2.4 GHz
5 GHz |
4 dBi
6 dBi |
| LEDs |
White/blue |
| Button |
Factory reset |
| Mounting |
Wall/ceiling (Included) |
| Operating temperature |
-30 to 60° C (-22 to 140° F) |
| Operating humidity |
5 to 95% noncondensing |
| Certifications |
CE, FCC, IC |
| Software |
|---|
| WiFi standards |
802.11a/b/g
WiFi 4/WiFi 5/WiFi 6 |
| Wireless security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID |
8 per radio |
| VLAN |
802.1Q |
| Advanced QoS |
Per-user rate limiting |
| Guest traffic isolation |
Supported |
| Concurrent clients |
350+ |
| Zero wait DFS |
Yes*
*Supported with upcoming firmware versions |
| Supported Data Rates |
|---|
| 802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b |
1, 2, 5.5, 11 Mbps |
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) |
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) |
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) |
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements |
|---|
| UniFi Network |
Version 6.1.56 and later |
