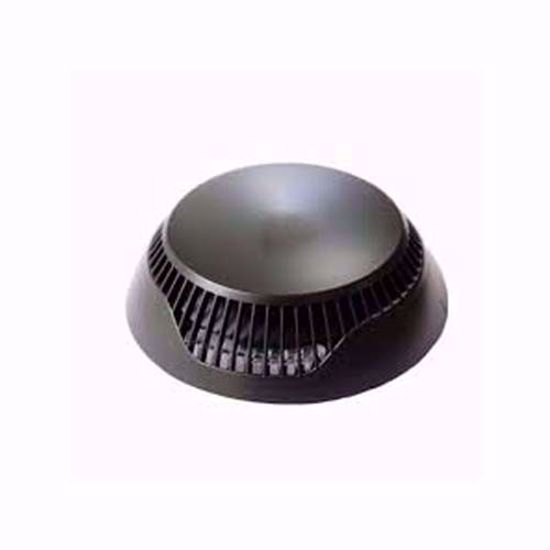

Model: Teletek SensoIRIS S130IS crni
Ugrađen izolator SensoIRIS S130IS je adresabilni optički detektor dima sa izolatorom dizajniran za instalaciju na adresibilne protivpožarne alarmne sisteme koji podržavaju TTE komunikacijski protokol. Detektor se napaja iz panela i može da se kontroliše putem komunikacijskog protokola.
Detektor SensoIRIS S130IS je kompatibilan sa protivpožarnom bazom B124.
Video klipovi:
1. Čišćenje požarnih senzora
Karakteristike:
- Sensitivity level selectable from the control panel – High/Normal/Middle/Low
- Low profile design
- Led indication with 360° visibility
- Built-in isolator
- EN54-7 and EN54-17 certified
Operating Voltage Range |
16 – 32VDC (Nom. 27VDC) |
Consumption in quiescent state, no communication |
< 190μA@27VDC |
Consumption in quiescent state, with communication |
< 310μA@27VDC |
Consumption in alarm state, with communication |
6.5mA |
Output in alarm state at terminal RI (terminals 4/ 1) |
7.5 mA (max)/ 7.5V |
Wire Gauge for terminals |
0.4mm² – 2.0mm² |
Operating temperature |
-10°C to +60°C |
Protection |
IP30 |
Weight (including base) |
~125g |
Dimensions (including base) |
103x42mm |
