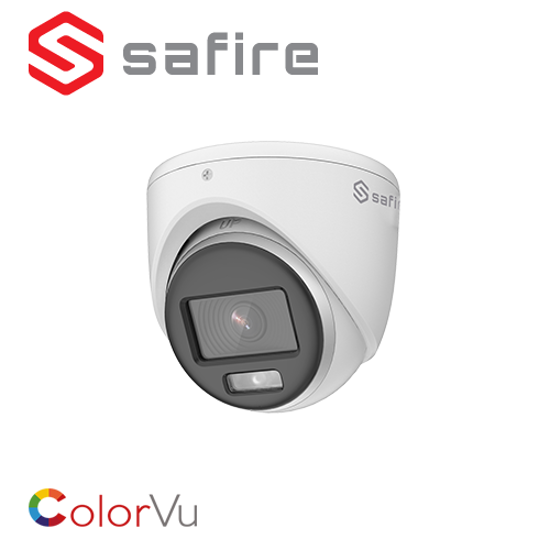

Safire SF-T943CA-3KP ColorVU dome kamera 2,8mm 6MP
Night Color kombinacija sočiva visoke osvetljenosti i izuzetno osetljivog senzora podešena za oštre slike u boji čak i noću bez potrebe za IC diodama. Slika u boji pruža dodatne ključne informacije iznad kvaliteta crnobelih slika. Široki dinamički opseg (WDR) koji rešava svaku situaciju pozadinskog osvetljenja ili visokog svetlosnog kontrasta.
3K Rezolucija (29601665 piksela)
3K Night Color CMOS Senzor
2.8mm Fiksniobjektiv
DWDR
3D DNR Audio Overcoax Ugrađen mikrofon
IP67 Weatherproof
SPECIFIKACIJE:
| Image Sensor |
3K CMOS |
| Signal System |
PAL/NTSC |
| Resolution |
2960 (H) 1665 (V) |
| Frame Rate |
TVI: 3K@20fps 4 MP@25fps/30fps 1080p@25fps/30fps
AHD: 5 MP@20fps 4 MP@25fps/30fps
CVI: 4 MP@25fps/30fps
CVBS: PAL/NTSC |
| Min. Illumination |
0.001 Lux @ (F1.0 AGC ON) 0 Lux with white light |
| Shutter Time |
PAL: 1/25 s to 1/50000 s;NTSC: 1/30 s to 1/50000 s |
| Lens |
2.8 mm |
| Field of View |
Horizontal FOV: 102 vertical FOV: 56 diagonal FOV: 122 |
| Lens Mount |
M12 |
| Light Alarm |
Solid Light Alarm (White Light) |
| Day & Night |
24/7 Color Imaging |
| WDR (Wide Dynamic Range) |
Digital WDR |
| Angle Adjustment |
Pan: 0 to 360 Tilt: 0 to 75 Rotation: 0 to 360 |
| White Light |
Auto/Off |
| Image Mode |
STD/HIGHSAT/HIGHLIGHT |
| AGC |
Yes |
| Day/Night Mode |
Color |
| White Balance |
Auto/Outdoor/Global/Manual |
| AE (Auto Exposure) Mode |
BLC;HLC;Global;HLS;DWDR |
| Noise Reduction |
2D DNR |
| Language |
English |
| Function |
Defective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;AntiBanding;Smart Light |
| Video Output |
Switchable TVI/AHD/CVI/CVBS |
| Audio In |
Builtin mic |
| Operating Conditions |
40C to 60C (40F to 140F) Humidity: 90% or less (noncondensing) |
| Power Supply |
12 VDC 25%
*You are recommended to use one power adapter to supply the power for one camera. |
| Consumption |
Max. 2.5 W |
| Protection Level |
IP67 |
| Material |
Metal |
| White Light Range |
Up to 20 m |
| Communication |
SafireC |
| |
|
