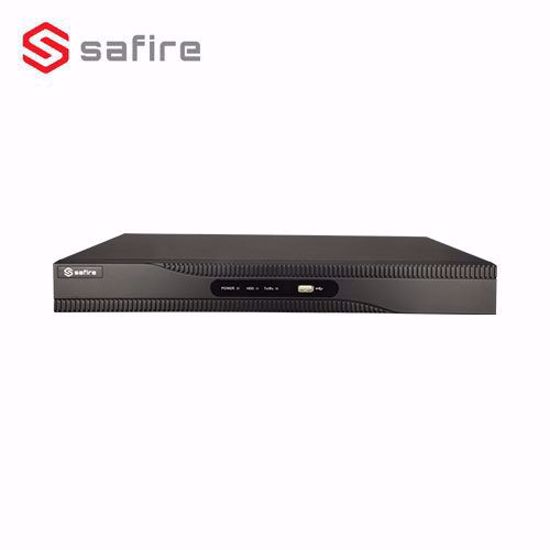

Safire SF-NVR6116-4KE mrežni snimač
Specifikacije:
| IP Video Input |
16-ch |
| HDMI Output |
1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output |
1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Incoming Bandwidth |
160 Mbps |
| Outgoing Bandwidth |
80 Mbps |
| Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding Format |
H.265+,H.265,H.264+,H.264 |
| Decoding Capability |
1-ch@8MP |
| Synchronous playback |
16-ch |
| Recording Resolution |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Network Protocol |
TCP/IP, DHCP, Safire Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface |
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Interface |
N/A |
| RAID Type |
No |
| SATA |
1 SATA interface |
| Capacity |
Up to 8TB capacity for each disk |
| USB Interface |
2 × USB 2.0 |
| Power Supply |
12 VDC, 1.3 A |
| Consumption |
≤ 10 W |
| Working Temperature |
-10 to +55º C (+14 to +131º F) |
| Working Humidity |
10 to 90 % |
| Chassis |
1U chassis |
| Dimension (W × D × H) |
320 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
| |
≤ 1 kg (2.2 lb) |
