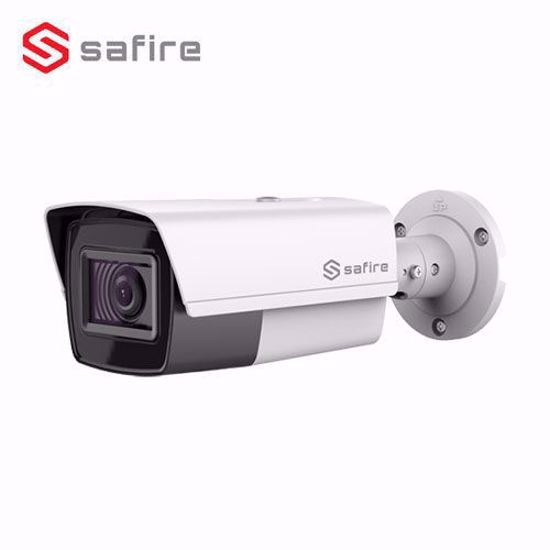

Safire SF-B788ZSW-2P4N1 pro bullet motozoom kamera 2MP
Senzor Starlight visoke osetljivosti 0005Lux za postizanje odličnih performansi u situacijama slabog osvetljenja. Rešenje pokreće 3DNR smanjenje šuma i SenseUp zatvarač male brzine. Široki dinamički opseg (WDR) od 120 dB rešava svaku situaciju pozadinskog osvetljenja ili visokog svetlosnog kontrasta.
Specifikacije:
| Image Sensor |
2.0 megapixel progressive scan CMOS |
| Max. Resolution |
1920 (H) 1080 (V) |
| Min. Illumination |
0.005 Lux@(F1.2 AGC ON) 0 Lux with IR |
| Shutter Time |
PAL: 1/25 s to 1/50 000 s
NTSC: 1/30 s to 1/50 000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0 to 360 Tilt: 0 to 90 Rotation: 0 to 360 |
| Signal System |
PAL/NTSC |
| Lens Type |
2.7 mm to 13.5 mm |
| Focal Length & FOV |
102 to 31 |
| Lens Mount |
? 14 |
| Image Parameters Switch |
STD/HIGHSAT |
| Image Settings |
Brightness Sharpness 3D DNR Mirror Smart IR |
| Frame Rate |
PAL: 1080p@25fps
NTSC: 1080p@30fps |
| Day/Night Mode |
Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) |
> 120 dB |
| Image Enhancement |
Yes |
| Privacy Mask |
ON/OFF 4 programmable privacy masks |
| Noise Reduction |
Level 1 to 10 |
| White Balance |
ATW/MWB |
| AGC |
High/Medium/Low |
| Video Output |
TVI/AHD/CVI/CVBS |
| Motion Detection |
4 programmable motion areas |
| Material |
Front cover: Metal
Main body: Plastic
Bracket: Metal |
| Dimension |
84.5 mm 92 mm 255.1 mm (3.33\" 3.62\" 10\") Approx. 695 g (1.53 lb.) |
| Operating Condition |
40 C to 60 C (40 F to 140 F) humidity: 90% or less (noncondensation) |
| Communication |
Up the coax Protocol: SafireC (TVI output) |
| Language |
English |
| Power Supply |
24 VAC 15% 12 VDC 20%
*You are recommended to use one power adapter to supply the power for one camera. |
| Consumption |
Max. 9.7 W |
| IR Range |
Up to 70 m |
| Protection |
IP67 |
