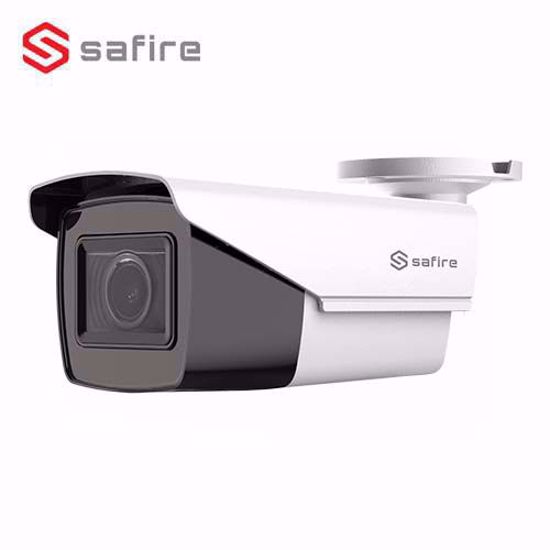

Safire SF-B788Z-5E bullet kamera 5mp motozoom
Specifikacije:
| Image Sensor |
5 MP CMOS image sensor |
| Max. Resolution |
2560 (H) × 1944 (V) |
| Min. Illumination |
Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time |
PAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360° |
| Lens Type |
2.7 mm to 13.5 mm motorized varifocal lens |
| Focal Length & FOV |
95° to 26° |
| Lens Mount |
Φ 14 |
| Image Settings |
Brightness, Sharpness, DNR, Mirror, Smart IR |
| Frame Rate |
PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps,NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps |
| Day/Night Mode |
Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) |
DWDR |
| Image Enhancement |
BLC |
| White Balance |
ATW/MWB |
| AGC |
Support |
| Video Output |
Switchable TVI/AHD/CVI/CVBS |
| Material |
Metal |
| Dimension |
84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10.04") |
| Weight |
Approx. 862 g (1.50 lb.) |
| Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication |
Up the coax, Protocol: Safire-C (TVI output) |
| Power Supply |
12 VDC ±15%, 24 VAC ±15% |
| Consumption |
Max. 8.8 W |
| IR Range |
Up to 40 m |
| Protection |
IP67 |
