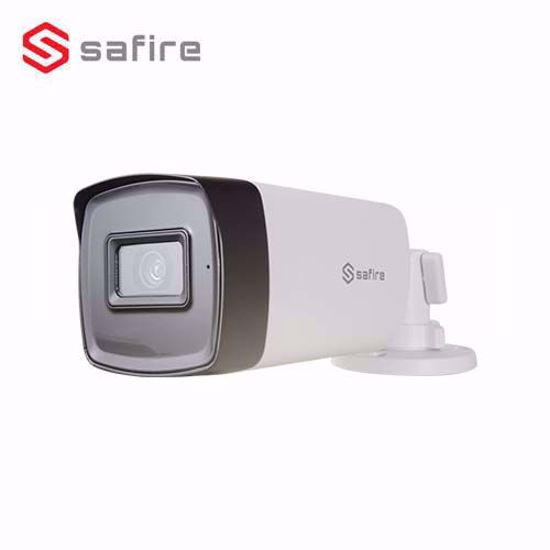

Safire SF-B023A-5P4N1-0600 bullet kamera

5 MP rezolucija; High Performance CMOS senzor; 6 mm fiksni objektiv; Smart IR do 40m; Ugrađen mikrofon, AoC; Digitalni WDR | 2D DNR; IP67 Weatherproof;
SKU: SF0514
Proizvođač: SAFIRE

Safire SF-B023A-5P4N1-0600 bullet kamera

5 MP rezolucija;
High Performance CMOS senzor;
6 mm fiksni objektiv;
Smart IR do 40m;
Ugrađen mikrofon, AoC;
Digitalni WDR | 2D DNR;
IP67 Weatherproof;



Specifikacije:

Image Senzor 5 MP CMOS
System PAL/NTSC
Resolution 2560 (H) 1944 (V)
Frame Rate TVI: 5 MP @ 20 fps 4 MP @ 30 fps 4 MP @ 25 fps 1080p @ 30 fps 1080p @ 25 fps
AHD: 5 MP @ 20 fps 4 MP @ 30 fps 4 MP @ 25 fps
CVI: 4 MP @ 30 fps 4 MP @ 25 fps
CVBS: PAL/NTSC
Illumination 0.01 Lux @ (F1.2 AGC ON) 0 Lux with IR
Shutter Speed PAL: 1/25 s to 1/50000 s;NTSC: 1/30 s to 1/50000 s
Lens 2.8 mm 3.6 mm 6 mm fixed focal lens
Field of View 2.8 mm horizontal FOV: 85 vertical FOV: 63 diagonal FOV:110
3.6 mm horizontal FOV: 80 vertical FOV: 63 diagonal FOV:105
6 mm horizontal FOV: 57 vertical FOV: 43 diagonal FOV:72
Aparature Lens M12
Day/Night IR Cut Filter
WDR Digital WDR
Angle adjustment Pan: 0 to 360 Tilt: 0 to 180 Rotation: 0 to 360
Image mode STD/HIGHSAT
AGC Yes
Day/Night mode Auto/Color/BW (Black and White)
White balance Auto/Manual
ModeAE (automatic exposition) BLC;HLC;Global;DWDR
Reduction 2D DNR
Language English
Functions Sharpness;Mirror;Brightness;Smart IR
Video formats Switchable TVI/AHD/CVI/CVBS
Microphone Builtin mic
Working conditions 40C to 60C (40F to 140F) Humidity: 90% or less (noncondensing)
Current 12 VDC 25%
Consumation Max. 4.5 W
Protection IP67
Material Front cover: Metal Main body: Plastic
Range IR Up to 40 m
Comunication SafireC
Dimensions 78.9 mm 75.4 mm 216.6 mm (3.10\" 2.97\" 8.53\")
Weight Approx. 338 g (0.75 lb.)
