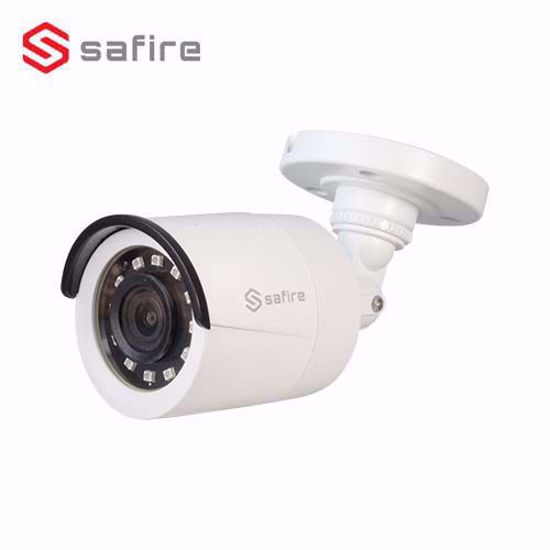

Model: Safire SF-B022-2E4N1 bullet kamera 2,8mm
Rezolucija 2MP; CMOS visokih performansi; 2,8 mm Fiksni objektiv; Smart IR Do 25m; Digital WDR | 2D DNR; IP67 Otporan na vremenske uslove;
Specifikacije:
| Image Sensor |
2 MP CMOS |
| Max. Resolution |
1920 (H) × 1080 (V) |
| Min. Illumination |
0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time |
PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
| Day & Night |
ICR |
| Angle Adjustment |
Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360° |
| Signal System |
PAL/NTSC |
| Lens Type |
2.8 mm fixed lens |
| Focal Length & FOV |
2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122° |
| Lens Mount |
M12 |
| Image Parameters Switch |
STD/HIGH-SAT |
| Image Settings |
Brightness, Sharpness, Smart IR |
| Frame Rate |
TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC |
| Day/Night Mode |
Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) |
Digital WDR |
| Image Enhancement |
BLC, HLC |
| White Balance |
Auto/Manual |
| AGC |
Yes |
| Video Output |
Switchable TVI/AHD/CVI/CVBS |
| Material |
Metal |
| Dimension |
Φ 70 mm × 137.8 mm (Φ 2.76" × 5.43") |
| |
Approx. 260 g (0.57 lb.) |
| Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication |
Safire-C |
| Language |
English |
| Power Supply |
12 VDC ± 25% |
| Consumption |
Max. 3 W |
| IR Range |
Up to 25 m |
| Protection |
IP67 |
