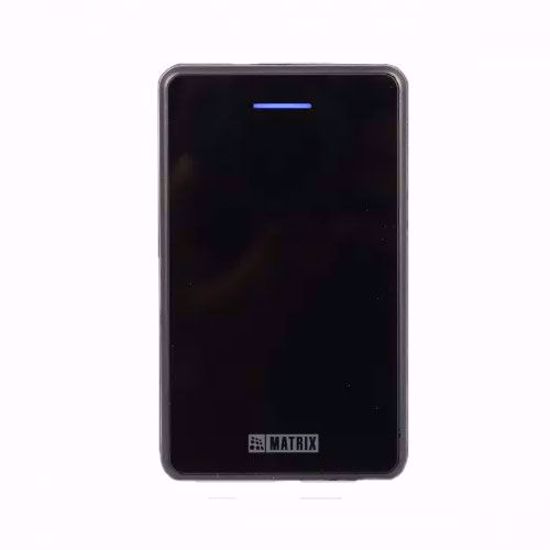

Matrix COSEC ATOM RD100M čitač kartica Mifare
COSEC ATOM je najsavremenija serija čitača za kontrolu pristupa namenjena da ispuni trenutne potrebe tržišta. To je idealna ravnoteža između korisnosti i što čini COSEC ATOM idealnim za profesionalno radno mesto. COSEC ATOM serija je pogodna za sve potrebe kontrole pristupa.
Čita kartice:
- MIFARE Classic®, DESFire EV1 and EV2(Read/Write)/ NFC Tag
COSEC ATOM ima GorilaGlass staklo sa prednje strane koje pruža zaštitu od ogrebotina i istovremeno poboljšava izgled uređaja. COSEC ATOM serija ima Veigand podršku za povezivanje sa kontrolerima nezavisnih proizvođača. U skladu sa međunarodnim standardima, idealan je za kritične unutrašnje i spoljašnje aplikacije.
Specifikacije:
Specifications | ATOM RD100K | ATOM RD100 |
GENERAL |
Credential Support |
BLE, PIN and Card |
BLE and Card |
RF Option |
ATOM RD100KE: EM Proximity Card ATOM RD100KM: MIFARE Classic, DESFire EV1 and EV2(Read/Write) ATOM RD100KI: HID iClass Card Support (Read/Write), Desfire EV1 & EV2 (CSN Read) and Mifare Classic (CSN Read) |
ATOM RD100E: EM Proximity Card ATOM RD100M: MIFARE Classic, DESFire EV1 and EV2(Read/Write) ATOM RD100I: HID iClass Card Support (Read/Write), Desfire EV1 & EV2 (CSN Read) and Mifare Classic (CSN Read) |
COMMUNICATION |
Inbuilt Bluetooth |
Yes |
Yes |
INTERFACE |
RS-232 |
Yes (Compatible with COSEC ARGO, COSEC VEGA, COSEC PATH V2) |
Yes (Compatible with COSEC ARGO, COSEC VEGA, COSEC PATH V2) |
Weigand |
Yes |
Yes |
RS – 485 |
Yes (Compatible with ARC DC200P) |
Yes (Compatible with ARC DC200P) |
HARDWARE |
Dimensions (H X W X D) |
101mm X 60 mm X 19mm |
101mm X 60 mm X 19mm |
Weight |
140grms (0.30 Lbs) |
140grms (0.30 Lbs) |
Gorilla Glass |
Yes (Gorilla Glass 3) |
Yes (Gorilla Glass 3) |
CPU |
Nordic 32 Bit |
Nordic 32 Bit |
Tamper Detection |
Yes |
Yes |
Buzzer |
Yes (12V Magnetic Buzzer) |
Yes (12V Magnetic Buzzer) |
LEDs |
Yes (Tri Color) |
Yes (Tri Color) |
Ingress Protection (IP) |
Yes (IP65) |
Yes (IP65) |
Vandal Proof (Ik) |
Yes (IK07) |
Yes (IK07) |
Keypad |
Yes |
- |
ENVIRONMENTAL |
Operating Temperature |
0°C to +55°C |
0°C to +55°C |
Humidity |
5% to 95 % RH Non-Condensing |
5% to 95 % RH Non-Condensing |
CERTIFICATES |
Certificates |
CE, FCC, ROHS, BIS |
CE, FCC, ROHS, BIS |
