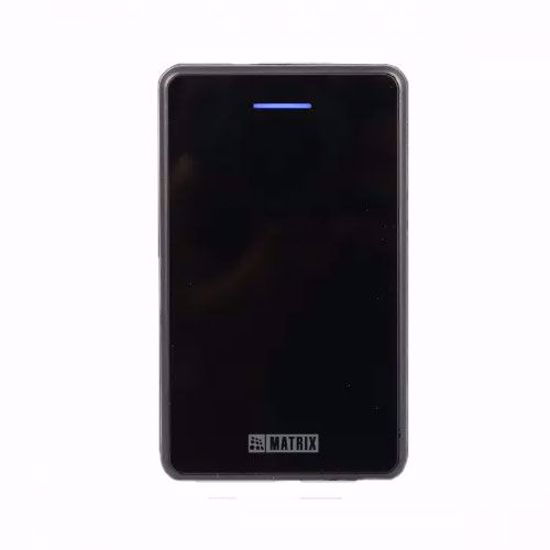

Matrix COSEC ATOM RD100I citac kartica HID iCLASS
COSEC ATOM je najsavremenija serija čitača za kontrolu pristupa namenjena da ispuni trenutne potrebe tržišta. To je idealna ravnoteža između korisnosti i što čini COSEC ATOM idealnim za profesionalno radno mesto. COSEC ATOM serija je pogodna za sve potrebe kontrole pristupa.
COSEC ATOM ima GorilaGlass staklo sa prednje strane koje pruža zaštitu od ogrebotina i istovremeno poboljšava izgled uređaja. COSEC ATOM serija ima Veigand podršku za povezivanje sa kontrolerima nezavisnih proizvođača. U skladu sa međunarodnim standardima, idealan je za kritične unutrašnje i spoljašnje aplikacije.
Specifikacije:
| Specifications | ATOM RD100K | ATOM RD100 |
|---|
| GENERAL |
| Credential Support |
BLE, PIN and Card |
BLE and Card |
| RF Option |
ATOM RD100KE: EM Proximity Card
ATOM RD100KM: MIFARE Classic, DESFire EV1 and EV2(Read/Write)
ATOM RD100KI: HID iClass Card Support (Read/Write), Desfire EV1 &
EV2 (CSN Read) and Mifare Classic (CSN Read) |
ATOM RD100E: EM Proximity Card
ATOM RD100M: MIFARE Classic, DESFire EV1 and EV2(Read/Write)
ATOM RD100I: HID iClass Card Support (Read/Write), Desfire EV1 &
EV2 (CSN Read) and Mifare Classic (CSN Read) |
| COMMUNICATION |
| Inbuilt Bluetooth |
Yes |
Yes |
| INTERFACE |
| RS-232 |
Yes (Compatible with COSEC ARGO, COSEC VEGA, COSEC PATH V2) |
Yes (Compatible with COSEC ARGO, COSEC VEGA, COSEC PATH V2) |
| Weigand |
Yes |
Yes |
| RS – 485 |
Yes (Compatible with ARC DC200P) |
Yes (Compatible with ARC DC200P) |
| HARDWARE |
| Dimensions (H X W X D) |
101mm X 60 mm X 19mm |
101mm X 60 mm X 19mm |
| Weight |
140grms (0.30 Lbs) |
140grms (0.30 Lbs) |
| Gorilla Glass |
Yes (Gorilla Glass 3) |
Yes (Gorilla Glass 3) |
| CPU |
Nordic 32 Bit |
Nordic 32 Bit |
| Tamper Detection |
Yes |
Yes |
| Buzzer |
Yes (12V Magnetic Buzzer) |
Yes (12V Magnetic Buzzer) |
| LEDs |
Yes (Tri Color) |
Yes (Tri Color) |
| Ingress Protection (IP) |
Yes (IP65) |
Yes (IP65) |
| Vandal Proof (Ik) |
Yes (IK07) |
Yes (IK07) |
| Keypad |
Yes |
- |
| ENVIRONMENTAL |
| Operating Temperature |
0°C to +55°C |
0°C to +55°C |
| Humidity |
5% to 95 % RH Non-Condensing |
5% to 95 % RH Non-Condensing |
| CERTIFICATES |
| Certificates |
CE, FCC, ROHS, BIS |
CE, FCC, ROHS, BIS |
