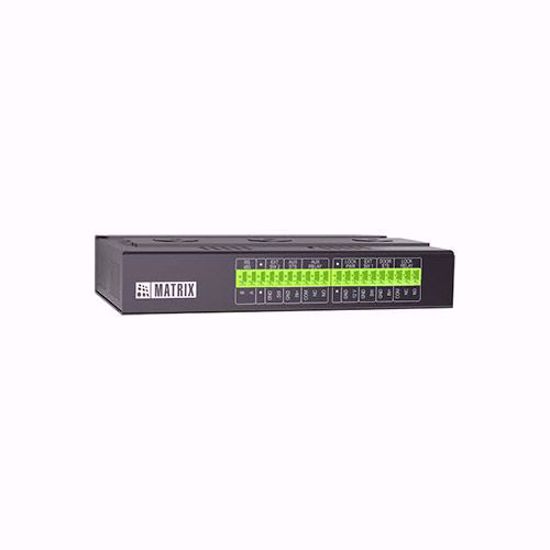

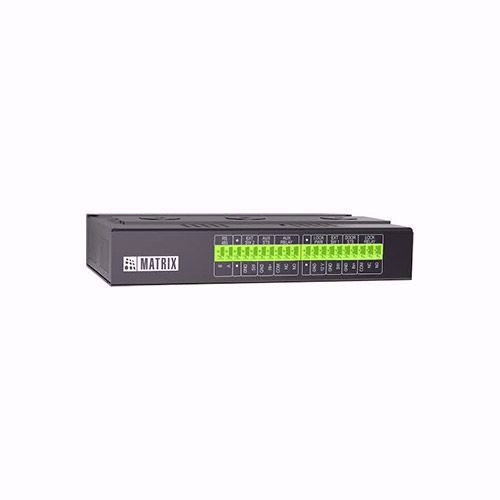

Matrix COSEC ARC DC200P kontroler za vrata
Kontroler za 2 vrata sa ugrađenim PoE+, Wi-Fi i Bluetooth
- Secured Socket Layer - SSL omogućen
- Radi u 2 operaciona moda:
Standalone Mod sa ugrađenim softverom u COSEC PANEL LITE
Network Mod sa COSEC CENTRA sa ili bez COSEC PANEL LITE
- Ugrađen PoE+ za napajanje brave i čitača (proveriti specifikacije brave)
- Za povezivanje Wiegand čitača drugih proizvođača
- 50,000 Korisnika i 500,000 događaja
- Povezivanje do 2 Wiegand i/ili RS-485 čitača, 2 brave, 2 izlazna tastera
- Industrijski Din Rail standard montaže i opcija za zidnu montažu
Tehničke specifikacije:
| GENERAL |
|---|
| Maximum Readers |
Up to 2 Readers (Wiegand and/or RS-485) |
| Maximum Doors |
2 |
| Maximum Users |
50,000 |
| |
|
| COMMUNICATION |
|---|
| Ethernet |
Yes, 10/100 Mbps |
| RS-485 |
Yes |
| SSL Enabled |
Yes |
| Bluetooth |
Yes (BLE-10m) |
| Wi-Fi |
Yes |
| PoE+ |
Yes, IEEE 802.3 af/at |
| |
|
| OPERATION MODES |
|---|
| Direct Door Mode |
With COSEC CENTRA (with COSEC PANEL LITE V2 for Dual Door Mode) |
| Panel Door Mode |
With COSEC PANEL |
| |
|
| READERS |
|---|
| Reader Power Output |
Max. 12V DC @ 0.250A |
| Reader Types |
2 Reader Port for any Wiegand or Matrix Reader |
| Interface |
RS-485 (For Matrix Reader Only) and Wiegand IN |
| |
|
| IN/OUT PORTS |
|---|
| Exit Switch Port |
Yes |
| Door Status Sense |
Programmable NO, NC |
| Door Lock Relay |
Maximum 30 V DC @ 2A, Relay SPDT, Form C |
| Door Lock Power |
12V DC @ 0.5A |
| AUX-IN Port |
Yes |
| AUX-Out Port |
30V DC @ 2A, Relay SPDT, Form C |
| |
|
| AUDIO VISUAL |
|---|
| LED |
Yes (Tri Color) |
| |
|
| ELECTRICAL |
|---|
| Input Power |
PoE+ (IEEE 802.3 af),12VDC @ 1.8A OR 12 VDC @ 2A Power Adaptor |
| CPU |
ARM Processor, 800MHz |
| Memory |
256MB Flash, 256MB RAM |
| |
|
| PHYSICAL |
|---|
| Mounting |
Wall Mount OR Din-Rail Mounting Options |
| Dimensions (W x H x D) (mm3) |
140mm(H) x 78mm(W) x 25mm(D) |
| Weight (kg) |
0.45 (0.99 lbs.) |
| |
|
| ENVIRONMENTAL |
|---|
| Humidity |
5% to 95% RH Non-Condensing |
| Operating Temperature |
-10°C to + 50°C (32°F to 122°F) |
| |
|
| OTHERS |
|---|
| System Integration |
API for Software Integration |
| |
|
| CERTIFICATIONS |
|---|
| |
CE, FCC, RoHS and UL |
