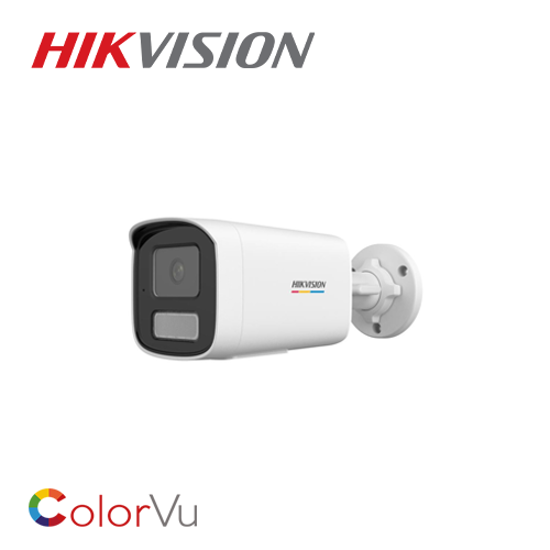

Hikvision DS-2CD1T47G2H-LIU(F)(2.8mm)(eF) bullet kamera ColorVu 4MP
4MP mrežna Smart Hybrid Light kamera u bullet kućištu sa ColorVu tehnologijom.
1/3” CMOS sa progresivnim skeniranjem.Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with Light. Maksimalna rezolucija 2560x1440. Fiksna optika 2.8 mm. Kompresija H.265+/H.265/H.264+/H.264. Nivo zaštite IP67. 120dB WDR. Domet IR/LED dioda 50 metara. Integrisan mikrofon. 12v napajanje, PoE. Odgovarajuća dozna je DS-1280ZJ-XS. Ugaoni nosač je DS-1276ZJ-SUS. Nosač za banderu DS-1275ZJ-SUS. Materijal: Metal i plastika.
SPECIFIKACIJE:
Kamera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution: 2560 × 1440
- Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 180°, rotate: 0° to 355°
Objektiv
- DORI
2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 50 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)1 fixed region for main stream
- Audio
- Audio TypeMono sound
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsIPv4，IPv6，TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- ClientiVMS-4200,Hik-Connect
- Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC,HLC,3D DNR
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-In MicrophoneYes,1 built-in microphone
- Reset Key-F: Yes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to memory card (-F model supports), trigger recording(-F model supports), upload to FTP,notify surveillance center,send email,trigger capture,notify surveillance center,send email,trigger capture
- General
- Power
12 VDC ± 25%, 0.57 A, max. 6.8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 8.3 W
- MaterialFront cover: metal, body: plastic, bracket: plastic
- Dimension81 mm × 83.7 mm × 201.96 mm (3.17" × 3.29" × 7.95")
- Package Dimension150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
- WeightApprox. 550 g (1.2 lb.)
- With Package WeightApprox. 800 g (1.8 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: English, Ukrainian
- General Function: Heartbeat, anti-banding, mirror, password protection, password reset via email
- Approval
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
- Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
