ELMO TRIALH spoljni žicani detektor

SKU: EL025956
Proizvođač: ELMO

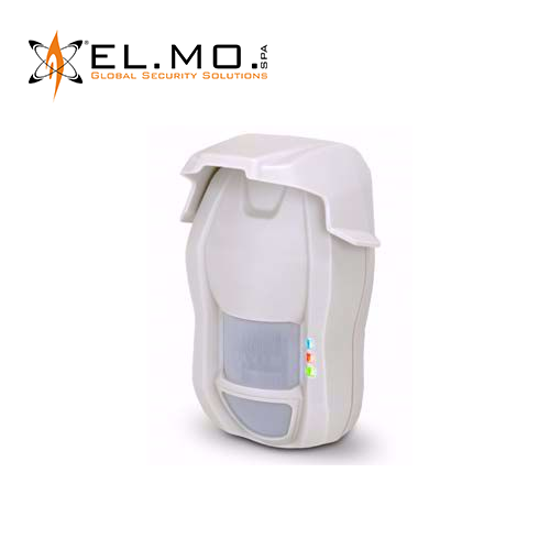

ELMO TRIALH spoljni žicani detektor

TRIALH je trostruki tehnološki detektor (MV + 2 IR), dometa do 15 m, pogodan za unutrašnje / spoljne instalacije.

Opremljen je horizontalnim sočivima i relejnim izlazima.
Nudi nekoliko funkcija koje omogućavaju postizanje vrlo visoke preciznosti detekcije i vrlo visoku otpornost na buku i neovlašćene radnje: dvostruki PIR, 3D funkcija, kolo protiv maskiranja, kolo protiv zaslepljivanja i protiv dezorijentacije (zahvaljujući akcelerometru visoke osetljivosti sa 2 ose operacija).

Poseban oblik kućišta TRIALH pojednostavljuje ugradnju u zid pomoću isporučenih 6° nosača sa fiksnim nagibom od 1m do 1,5m visine. Za spoljne instalacije isporučuje se zaštita od sunca. Sertifikovani IMQ-Allarme EN50131-2-4 Grade 3, Class 4.



Specifikacije:

MW

  • Range from 3m to max 15m adjustable
  • Horizontal coverage area 95°
  • Sensitivity: dipswitch for the selection from 8 pulses and max 4 pulses with 5s waiting (the selector is unique for IR and MW).
  • TX frequency 10,525GHz
  • Emitted power 13 dBm E.I.R.P.
  • Pulsed emitted signal
  • MW Timings: single alarm with confirmation waiting from the IR sections for 10s (with AND operations), direct alarm to general relay for OR operations.
  • DRO device and planar antenna RTTE/99-05 certified with pulsed operations.

IR

  • Range 15m with height fixing from 1 to 1,5 m, the coverage can change in according to the mounting solution adopted with angled bracket and/or with SNDTRIAL optional accessories.
  • 2 sections
  • Sensible zones number: 2 x 15 zones on 1 floor.
  • Sensitivity: dipswitch to select from min 4 pulses and max 2 pulses with 5s waiting (the selector is unique for IR and MW).
  • Horizontal coverage area 90°
  • IR Timings: single alarm with confirmation waiting from the MW sections for 10s (with AND operations), direct alarm to general relay for OR operations.
  • IR gain stage: optimized with the temperature

Wireless

  • /

Compatible lines

  • All control units

Installations

  • Indoor/outdoor
  • Supplied 6° fixed inclination bracket  made with an optimal grade from 1 to 1.5 m standard installations (provided)

Connections

  • Alarm relay
  • Anti-masking relay
  • Tamper

Settings

  • Internal dipswitch

Filters

  • Against noise digital filter fo neon lamps
  • Silicon filter for glare protection from withe light

LED

  • Views through LED: MW operation, IR operation, alarm status, fault, disorientation, masking/blindness

Functions

  • Anti-blinding active circuit in the IR section
  • Anti-masking active circuit in the MW section
  • Disorientation detection with accelerometric device on two axes always enabled and resulting tamper alarm generation
  • Sophisticated algorithm used by the environmental monitoring circuit with AD conversion on IR
  • 3D function
  • Protection against noise applied to the power terminals, also the alarm relay has output contacts with a serial resistance

Operating temperature

  • -10 / +55°C, 93% Ur

Dimensions and weight

  • H 167 - W 95 - D 75 mm only body detector
  • 270 g without accessory joint

Power consumption

  • 19mA idle status (excited relay), 21 mA alarm (de-energized relay), stand-by, MW esclusion: 17 mA

Power supply

  • DC12V (from 7.5 to 15V)

Standards

  • Certified IMQ-Allarme EN50131-2-4 grade 3, environmental class 4

Parts supplied

  • 6° fixed inclination bracket , protective sunshield, screws, bolts, technical manual
