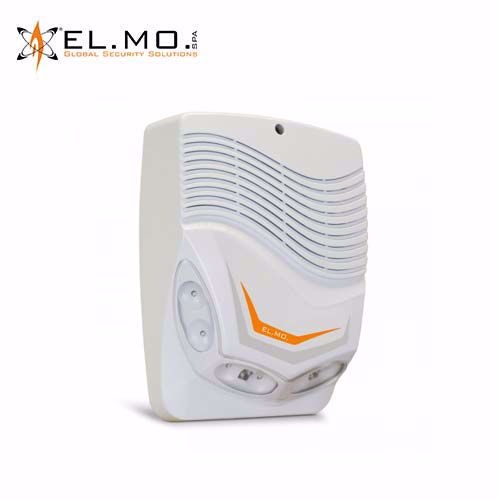

ELMO LEDA485VOX Ultrabus spoljna sirena
LEDA485VOX je nova spoljna LED sirena na serijskoj magistrali RS485 sa razvijenim funkcijama sinteze glasa.
LEDA485VOX kombinuje sve LEDA485 funkcije (programiranje putem računara, jednostavna instalacija, prilagođeni LED) sa mnogim funkcijama za prilagođavanje glasovnih signalizacija.
Zahvaljujući upravljačkim jedinicama za otkrivanje upada softver je u stanju da sačuva poruke (putem snimanja glasa mikrofonom povezanim na računar ili funkcijom pretvaranja teksta u govor) i dodeli ih određenim događajima (alarm, manumisija i kvarovi) ili vizuelnim signaliziranjem prilagodljive LED diode.
Rezultat je inteligentna sirena, odlikovana korisnim dizajnom, koja predstavlja produžetak vašeg glasa kako bi se uvek obezbedila maksimalna sigurnost.
Specifikacije:
| Type |
Outdoor self-powered siren on RS485 serial bus with voice synthesis functions |
| LED flashings |
High brightness LED flaher, LED for system status and 2 white LEDs for multifunctions signalling customizable by the user |
| Compatible control units |
ETR G2, PREGIO, VIDOMO, VIDOMO2K and TITANIAPLUS |
| Horns |
2 x 4 Ohm horns |
| Emission frequency |
1,73 KHz, adjustable via software |
| Sound |
Customizable by the user |
| Recordable sounds |
8 messages customizable by the user (+ 5 standard sounds) |
| Recording total duration |
2 minutes |
| Available Macro |
3 macro standard + 9 macro customizable by the user |
| Activation |
From serial line |
| Sound pressure |
107 dB at 1 m (@ DC12V) |
| Alarm max time |
5 minutes, adjustable via software |
| Flashing activation |
Adjustable via software |
| Flashes number |
Adjustable via software |
| Battery (optional) |
12V / 1,2 Ah (dimensions max W 97 x H 51 x D 43mm - without poles) |
| Protections |
Siren protected against the housing opening and removal from wall |
| Temperature sensor |
Supplied |
| Input for anti-foam device (optional) |
Yes |
| Operating temperature |
From -20°C to +55°C |
| Protection class |
For outdoor installation. Housing protected against objects upper to 2.5mm and against water |
| Dimensions and weight |
W 226 x H 310 x D 90 mm, 1,9 Kg |
| Nominal power supply |
DC12 V from RS485 serial line |
| Power consumption |
30 mA (idle mode), 380mA (alarm), +37mA with system status LED, +300 with LED ON |
| Standard |
EN50131-4 grade 3 |
