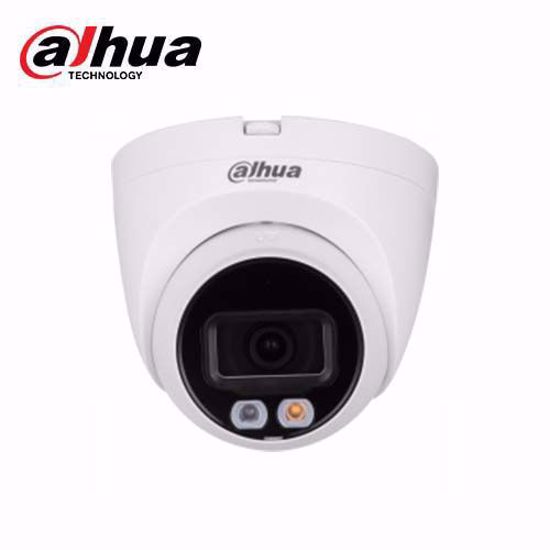

IPC-HDV2249T-S-IL
2MP Smart Dual Light WizSense mrežna Turret kamera sa fiksnim fokusom
> 2-MP 1/2,8" CMOS senzor slike, niske osvetljenosti i slike visoke definicije.
> Izlazi max. 2 MP (1920 × 1080) @ 25/30 fps.
> H.265 kodek, visoka stopa kompresije, ultra-niska brzina prenosa.
> Ugrađeno toplo svetlo/IR LED, maks. udaljenost osvetljenja je 30 m i maks. udaljenost toplog svetla je 30 M.
> ROI, SMART H.264+/H.265+, fleksibilno kodiranje, primenljivo na različite propusne opsege i okruženja za skladištenje.
> Režim rotacije, WDR, 3D NR, HLC, BLC, digitalni vodeni žig, primenljiv na različite scene praćenja.
> Inteligentno praćenje: Upad, tripvire (dve funkcije podržavaju klasifikaciju i tačnu detekciju vozila i ljudi).
> Podržava maks. 256 G Micro SD kartica; ugrađen mikrofon.
> 12 VDC/PoE napajanje, jednostavno za instalaciju.
> IP67 zaštita.
> SMD Plus.
Specifikacije:
Camera
|
Image Sensor
|
1/2.8" CMOS
|
Max. Resolution
|
1920 (H) × 1080 (V)
|
ROM
|
128 MB
|
RAM
|
128 MB
|
Scanning System
|
Progressive
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100,000 s
|
Min. Illumination
|
0.002 lux@F1.6 (Color, 30 IRE)
0.0002 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
|
S/N Ratio
|
>56 dB
|
Illumination Distance
|
30 m (98.43 ft) (IR), 30 m (98.43 ft) (Warm light)
|
Illuminator On/Off Control
|
Auto; Manual
|
Illuminator Number
|
1 (IR LED); 1 (Warm light)
|
Pan/Tilt/Rotation Range
|
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
|
Lens
|
Lens Type
|
Fixed-focal
|
Lens Mount
|
M12
|
Focal Length
|
2.8 mm; 3.6 mm
|
Max. Aperture
|
F1.6
|
Field of View
|
2.8 mm: H: 107°; V: 56°; D: 127° 3.6 mm: H: 88°; V: 44°; D: 105°
|
Iris Control
|
Fixed
|
Close Focus Distance
|
2.8 mm: 0.7 m (2.30 ft) 3.6 mm: 1.3 m (4.27 ft)
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
2.8 mm
|
43.9 m
(144.03 ft)
|
17.5 m
(57.41 ft)
|
8.8 m
(28.87 ft)
|
4.4 m
(14.44 ft)
|
3.6 mm
|
58.9 m
(193.24 ft)
|
23.6 m
(77.43 ft)
|
11.8 m
(38.71 ft)
|
5.9 m
(19.35 ft)
|
Intelligence
|
IVS (Perimeter Protection)
|
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
|
Smart Search
|
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
|
Video
|
Video Compression
|
H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
|
Smart Codec
|
Smart H.265+; Smart H.264+
|
Video Frame Rate
|
Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
|
Stream Capability
|
2 streams
|
Resolution
|
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
|
Bit Rate Control
|
CBR/VBR
|
Video Bit Rate
|
H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
|
Day/Night
|
Auto (ICR)/Color/B/W
|
BLC
|
Yes
|
HLC
|
Yes
|
WDR
|
120 dB
|
White Balance
|
Auto; natural; street lamp; outdoor; manual; regional custom
|
Gain Control
|
Auto; Manual
|
Noise Reduction
|
3D NR
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
Region of Interest (RoI)
|
Yes (4 areas)
|
Image Rotation
|
0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
|
Mirror
|
Yes
|
Privacy Masking
|
4 areas
|
Audio
|
Built-in MIC
|
Yes
|
Audio Compression
|
G.711a; G.711Mu; PCM; G.726
|
Alarm
|
Alarm Event
|
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; SMD; voltage detection; security exception
|
Network
|
Network Port
|
RJ-45 (10/100 Base-T)
|
SDK and API
|
Yes
|
Network Protocol
|
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
|
Interoperability
|
ONVIF (Profile S/Profile T); CGI; P2P; Milestone
|
User/Host
|
6 (Total bandwidth: 36 M)
|
Storage
|
FTP; SFTP; Micro SD card (support max. 256 GB)
|
Browser
|
IE; Chrome; Firefox
|
Management Software
|
DSS;DMSS
|
Mobile Client
|
iOS;Android
|
Cyber Security
|
Configuration encryption; Trusted execution; Digest; Security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification
|
Certification
|
Certifications
|
CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
|
Power
|
Power Supply
|
12 VDC/PoE (802.3af)
|
Power Consumption
|
Basic: 1.6 W (12 VDC); 1.9 W (PoE)
Max. (H.265 + intelligence + WDR + warm light): 3.8 W (12 VDC); 4.4 W (PoE)
|
Environment
|
Operating Temperature
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
Operating Humidity
|
≤95%
|
Storage Temperature
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
Protection
|
IP67
|
Structure
|
Casing Material
|
Inner core: Metal ; Cover: Plastic
|
Product Dimensions
|
100.9 mm × Φ109.9 mm (3.97" × Φ4.33")
|
Net Weight
|
0.37 kg (0.82 lb)
|
Gross Weight
|
0.51 kg (1.12 lb)
|
