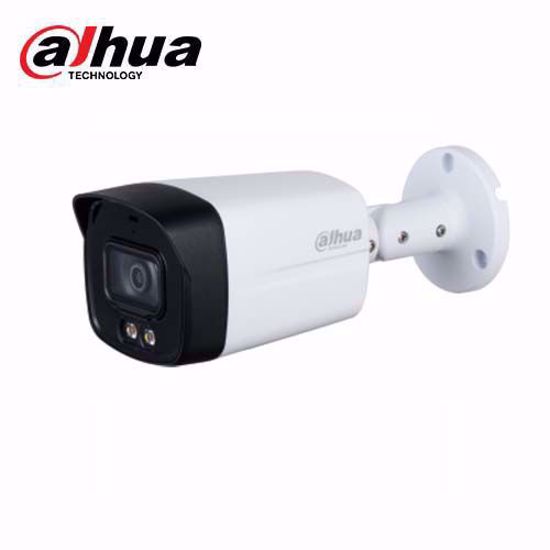

DAHUA HAC-HFW1500TLM-IL-A-0360B-S2 bullet kamera 3,6mm 5MP
5MP Smart Dual Light HDCVI kamera sa fiksnim fokusom
* Parametri i listovi podataka u nastavku mogu se primeniti samo na seriju 1500-IL.
* Da biste koristili 5MP 16:9 i Smart Dual Light HDCVI kameru, firmver KSVR mora biti nadograđen na V4.001.0000004.1.R.220323 ili noviju verziju.
> Maks. 25 fps @ 5MP (16:9 video izlaz).
> Smart Dual Light.
> 40 m udaljenosti osvetljenja.
> Super Adapt.
> Ugrađeni MIC.
> 3,6 mm fiksno sočivo (2,8 mm opciono).
> CVI/CVBS/AHD/TVI se može prebaciti.
> IP67, 12 VDC.
Specifikacije:
|
Camera
|
|
Image Sensor
|
5 MP CMOS
|
|
Max. Resolution
|
2880 (H) × 1620 (V)
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
|
|
Min. Illumination
|
0.05 lux@F1.6 (Color, 30 IRE)
0.005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
|
|
S/N Ratio
|
>65 dB
|
|
Illumination Distance
|
IR: 40 m (131.23 ft)
Warm Light: 40 m (131.23 ft)
|
|
Illuminator On/Off Control
|
Auto/Manual
|
|
Illuminator Number
|
2 (Warm light);2 (IR light)
|
|
Angle Adjustment
|
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
|
|
Lens
|
|
Lens Type
|
Fixed-focal
|
|
Lens Mount
|
M12
|
|
Focal Length
|
2.8 mm; 3.6 mm
|
|
Max. Aperture
|
F1.6
|
|
Field of View
|
2.8 mm: H: 106°; V: 56°; D: 125°
3.6 mm: H: 92°; V: 48°; D: 109°
|
|
Iris Control
|
Fixed
|
|
Close Focus Distance
|
2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft)
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
2.8 mm
|
56 m
(183.73 ft)
|
22.4 m
(73.49 ft)
|
11.2 m
(36.75 ft)
|
5.6 m
(18.37 ft)
|
|
3.6 mm
|
76 m
(249.34 ft)
|
30.4 m
(99.74 ft)
|
15.2 m
(49.87 ft)
|
7.6 m
(24.93 ft)
|
|
Video
|
|
Video Frame Rate
|
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
|
|
Resolution
|
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
BLC
|
BLC; HLC; DWDR
|
|
WDR
|
DWDR
|
|
White Balance
|
Auto; Area white balance
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
2D NR
|
|
Illumination Mode
|
Smart IR&WL; WL Mode; IR Mode
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
Off/On (8 areas, rectangle)
|
|
Certification
|
|
Certifications
|
CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
|
|
Port
|
|
Video Output
|
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
|
|
Audio Input
|
One channel built-in mic
|
|
Power
|
|
Power Supply
|
12 VDC ± 30%
|
|
Power Consumption
|
Max 4.5 W (12 VDC, WLED on)
|
|
Environment
|
|
Operating Temperature
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
|
Operating Humidity
|
<95% (RH), non-condensing
|
|
Storage Temperature
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
|
Storage Humidity
|
<95% (RH), non-condensing
|
|
Protection
|
IP67
|
|
Structure
|
|
Casing Material
|
Metal front cover + plastic rear barrel + metal bracket
|
|
Product Dimensions
|
198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.16" × 3")
|
|
Net Weight
|
0.3 kg (0.66 lb)
|
|
Gross Weight
|
0.42 kg (0.93 lb)
|
|
Installation
|
Wall mount; ceiling mount; vertical pole mount
|
