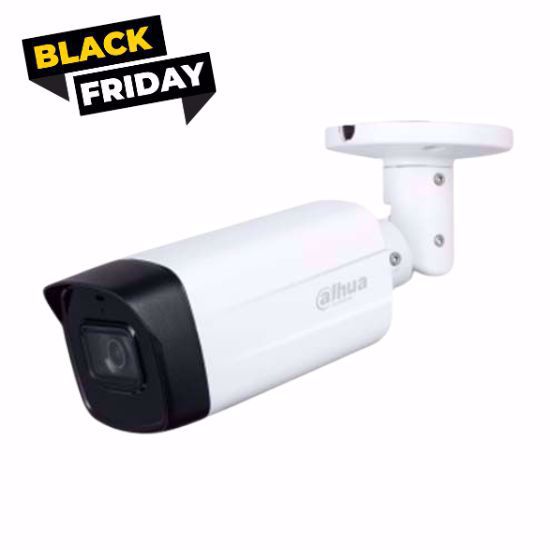

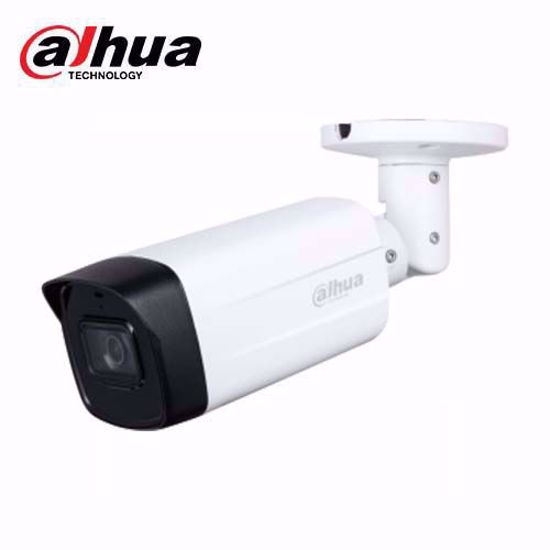

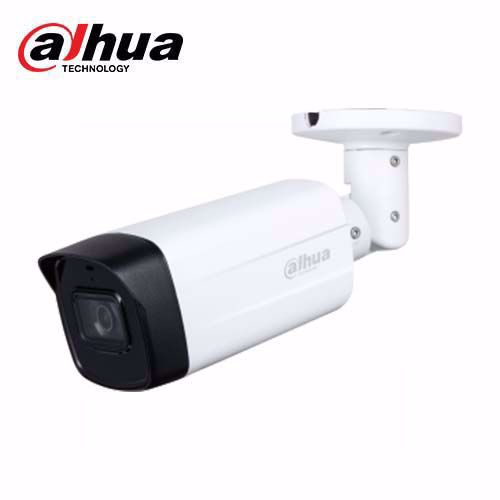

HAC-HFV1200TH-I8-A
2MP IR HDCVI kamera sa fiksnim fokusom
* Parametri i listovi sa podacima u nastavku mogu se primeniti samo na seriju 1200-S6.
> Maks. 30 fps@1080p.
> Pametno IR osvetljenje.
> 80 m udaljenosti osvetljenja.
> Super Adapt.
> Ugrađeni mikrofon.
> 3,6 mm fiksno sočivo (2,8 mm, 6 mm opciono).
> CVI/CVBS/AHD/TVI se može prebaciti.
> IP67, 12 VDC.
Specifikacije:
|
Camera
|
|
Image Sensor
|
2 MP CMOS
|
|
Max. Resolution
|
1920 (H) × 1080 (V)
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
|
|
Min. Illumination
|
0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)
|
|
S/N Ratio
|
>65 dB
|
|
Illumination Distance
|
80 m (262.47 ft)
|
|
Illuminator On/Off Control
|
Auto
|
|
Illuminator Number
|
2 (IR light)
|
|
Angle Adjustment
|
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
|
|
Lens
|
|
Lens Type
|
Fixed-focal
|
|
Lens Mount
|
M12
|
|
Focal Length
|
2.8 mm; 3.6 mm; 6 mm
|
|
Max. Aperture
|
F2.0
|
|
Field of View
|
2.8 mm: H: 102°; V: 60°; D: 129°
3.6 mm: H: 83°; V: 48°; D: 104°
6 mm: H: 47°; V: 27°; D: 54°
|
|
Iris Control
|
Fixed
|
|
Close Focus Distance
|
2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.7 m (2.30 ft)
6 mm: 2.3 m (7.55 ft)
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
2.8 mm
|
41.4 m
(135.83 ft)
|
16.5 m
(42.13 ft)
|
8.3 m
( 27.23 ft)
|
4.1 m
(13.45 ft)
|
|
3.6 mm
|
50.9 m
(166.99 ft)
|
20.3 m
(66.60 ft)
|
10.2 m
(33.46 ft)
|
5.1 m
(16.73 ft)
|
| |
6 mm
|
95.1 m
(312.01 ft)
|
38.0 m
(124.67 ft)
|
19.0 m
(62.34 ft)
|
9.5 m
(31.17 ft)
|
|
Video
|
|
Video Frame Rate
|
CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H
|
|
Resolution
|
1080p (1920 × 1080); 960H (960 × 576/960 × 480)
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
BLC
|
BLC; HLC; DWDR
|
|
WDR
|
DWDR
|
|
White Balance
|
Auto; Area white balance
|
|
Gain Control
|
Auto
|
|
Noise Reduction
|
3D NR
|
|
Illumination Mode
|
Smart IR
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
Off/On (8 areas, rectangle)
|
|
Certification
|
|
Certifications
|
CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B
|
|
Port
|
|
Video Output
|
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
|
|
Audio Input
|
One channel built-in Mic
|
|
Power
|
|
Power Supply
|
12 VDC ± 30%
|
|
Power Consumption
|
Max 4.9 W (12 VDC, IR on)
|
|
Environment
|
|
Operating Temperature
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
|
Operating Humidity
|
<95% (RH), non-condensing
|
|
Storage Temperature
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
|
Storage Humidity
|
<95% (RH), non-condensing
|
|
Protection
|
IP67
|
|
Structure
|
|
Casing Material
|
Metal front cover + plastic rear barrel + metal bracket
|
|
Product Dimensions
|
240.7 mm × 90.7 mm × 90.4 mm (9.48" × 3.57" × 3.56")
|
|
Net Weight
|
0.41 kg (0.90 lb)
|
|
Gross Weight
|
0.62 kg (1.37 lb)
|
|
Installation
|
Wall mount; ceiling mount; vertical pole mount
|
